Internet of Things Smart Home Home Automatic Control System

Product Specifications

Prod Model:	0004
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Task:	Program
Structure:	Combination
Signal:	Continuous
Function:	Automatic Control
Condition:	New
Customized:	Customized
Material:	Plastic and Electronic

Product Description

1.summary:

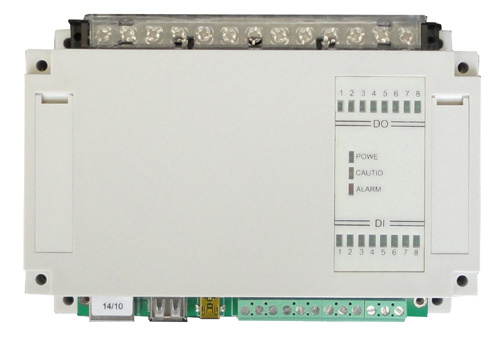

   Embedded web server EA02(as follows EA02)is a small but powerful server.nput IP address(such as"192.168.1.200 " ),We can control outputs of delays and check on inputs contact points status via the ethernet.It can by used either on a LAN or ethernet.You needn't install software.The interface is beautiful.It can play cartoon,flash,audio and video.You can redevelop or upgrade it all by yourself.
    Users can programme the product with socket.

2.Products characters :

1).Based on advanced B/S architecture, control the relay through the browser directly, check on the input state of contact, no need to install software, easy to use. Support PC, cellphone, tablet computer browser such as IE, Openg, Firefox,UC, chrome,Baidu,Google,QQ browser.
2). It can be used on LAN, the Internet. Through the configuration of the router port mapping,terminal browser can access and control it.
3).Support MP3, FLV, SWF and other audio, video media player (note! At the same time, also need a browser that supports). The developed interface more beautiful, more appealing. The user can add their own introduction,profile,advertisement and other audio, video media.
4).Many internal parameters set by Webpage, more intuitive and convenient.
5).The switch state and the DI input state refresh and display automatically.
).It can Set or memory.When EA02 is power up, output relay status.
7).Support for multiple users to simultaneously access.
8).With perfect, convenient redevelope ability, users can update products on their own. Dreamweaver or other software can be used to redevelope. Support HTML,VBScript,JavaScript,simple ASP. Support for multiple file format GIF, PNG, JPG, BMP and so on.
9).With the Ftp server port, user's own redevelopment of Webpage can be transmitted to the server via the port.
10). Ftp port protection function. When enabled, access to internal documents through the Ftp port is prohibitted. Protect the fruits of redevelopment.
11).Up to 200M user space for use.
12).More than 1000 lines of ASP codes are opened to user to learn and reference.It is convenient for users to redevelop their own system.
13).Extensible peripheral functions flexibly via the serial port. It can be connected to other MCU system. (* optional features)
14).Ultra low-power fanless design, continuous work around the clock.
15).The product can be used to install or screw installation guide, very convenient.
16).Manufacturer has strong research and development capabilities.If you have more features,please contact the manufacturer.
3.Parameters:


Items	Data
Type	EA02
Working voltage	DC:9~30V
Working temperature	-20~70ºC
Output contact	dry contact output,5A/250V × 8 routes
Input contact	dry contact input eight routes
Maximum power consumption of power supply	6W(DC24V)
Static power dissipation power	2W(DC24V)
Size	155×110×64(mm)
Net weight	380(g)
Original IP	192.168.1.200
Original password	123456
Ports	Ethernet × 1 Data input ports× 8 Data output ports× 8 USB(host)× 1* USB(device)× 1* *:Non standard parts, need to customize

Little hints :This product can be redeveloped, The redevelopment of this product can refer to the product inside the ASP source files or customed by the manufacturers

4.Applications::
Product can be used widely in remote monitoring,operation based on ethernet.For example:
1.Control ritzy intelligent Home
2.Industrial automatic controling or monitoring.
3.Embedded modules in automatic equipments,add Web control fuctions to the equipments.
