Product Specifications
| Prod Model: |
GP-328 Walkie talkie |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| 1: |
Walkie Talkie |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Usage: |
Home,Commercial |
Product Description

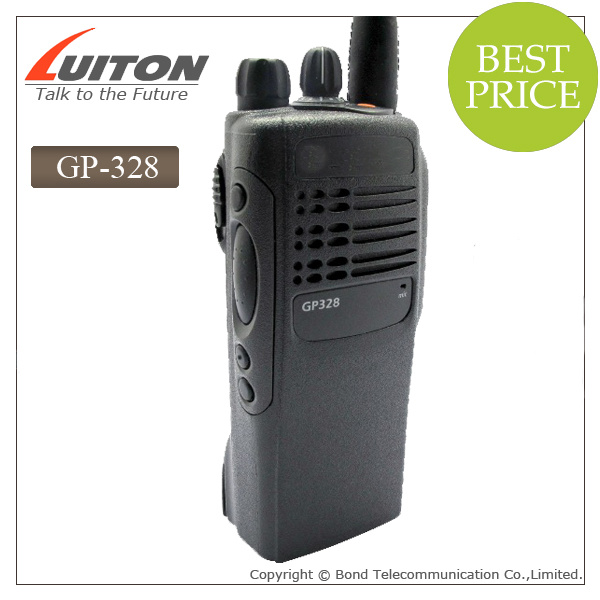

Interphone Intercom Gp-328 Walkie TalkieFeatures:1. Frequency Range: VHF: 136-174, 400-470 MHz
2. Output power: 1W/5W
3. Channel: 16
5. Emergency call
6. Build-in CTCSS/ DCS
7. DIMF ANI/DTMF Paging
8. Auto scan priority channel
9. TOT function
10. Battery Save
11. P. C programming
12. Talk Range: 5-10 km
13. Dimension: 13.7cm*5.75cm*3.75cm
14. Weight: 420g(include battery)
All trademarks and copyrights on this page are owned by their respective owners.
|
GP-328 Technical specification |
|
|
Model |
GP-328 |
|
|
general |
|
|
|
Frequency band |
VHF |
UHF |
|
Frequency range |
136-174MHz |
403-470 |
|
Output power |
5W(VHF)4W(UHF) |
|
Channel capacity |
16 |
|
Operating voltage |
7.2VDC |
|
Antenna impedance |
50Ω |
|
Working temperature |
30°-+60° |
|
Frequency stability |
±2.5ppm |
|
Dimension(without antenna) |
137*57.5*37(H*W*D) |
|
Weight(with battery) |
420gincldu battery) |
|
Battery |
lithium battery OR Ni-MH battery |
|
compatible with American military standard (MIL-STD-810C/D/E) |
|
Transmitter |
|
|
|
Modulation type |
P3E |
|
Modulation distortion |
<5%(300-3000Hz) |
|
Max Freq deviation |
<5KHz |
|
FM noise |
≤45dB |
|
Receiver |
|
|
|
Sensitivity |
0.16µ |
|
Selectivity |
55dB |
|
Adjacent channel selectivity |
≥65dB |
|
Noise respond |
≥60dB |
|
FM noise |
45dB |
|
Modulation type |
16koF3E |
|
Audio power output |
500mw when distortion less than 10% |
|
Audio distortion |
<5% |
Bond telecom Co., Ltd. is a sincere company which is specializedin producing & exporting two way radios, we have been developing analog & digital portable, vehicle, CB radios, repeaters & accessories.
We have been in this line from 2005 with rich experience. We attend professional electronics fairs all over the world, especially Hong Kong electronics fair spring & autumn editions by hktdc, Thailand, Indonesia, Russian & Brazil exhibitions.
We gained high reputation & orders from regular & new customers on the fairs; Our city is neighbouring to xiamen, nearly to shenzhen & Hong Kong airports, we have convenience transportation for land, sea & air shipping.
Specializes in producing and marketing professional FM radios, with VHF, UHF, marine, CB band, mobile and portable status. Some models are with CE, RoHS and FCC approval. We have been in this field more than ten years.
Our main markets are South America, Asia, Europe, North America and the Middle East. Our products have won a good reputation in those markets.
We can supply OEM and ODM services. Please feel free to contact us for further information.
