Product Specifications
| Prod Model: |
YS-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Model Number: |
Ys-001 |
| Type: |
Electrical Plug/Plug with Socket |
| Grounding: |
Self Grounding |
| Rated Voltage: |
220/250V |
| Rated Current: |
10/16A |
| Application: |
Residential / General-Purpose |
| Color: |
White/Black |
| Standard: |
Swiss Standard |
| Function: |
Headphone Plug |
| Certification: |
PSB |
Product Description

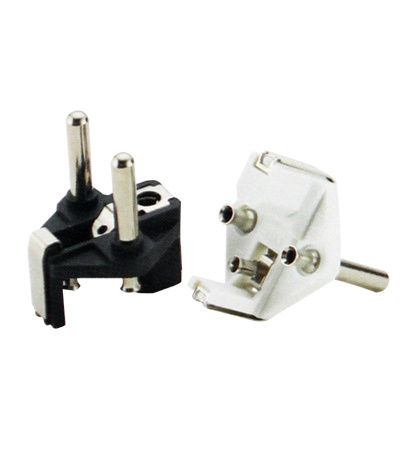

1)YS-001 VDE CERTIFIED GERMANY PLUG INSERT
2)VDE NO.40030576
3)VDE MARK:YS-R
4)top quality
5)hollow pin filled with pbt
Our Electronic Components Factory is a leading manufacturer of power plug insert, Audio & Video plug and other Connectors & Terminals.
Our plug inserts are featured by seamless hollow brass pins. And we are the unique manufactory whose hollow plug inserts passed VDE certifications in the world .
Hollow-pin plug inserts are also strictly compliant with Lead-free(Pb<100ppm), RoHS, REACH, PAHs and Phthalate, etc.
Thanks to our highly automated nickel plating process and excellent invention for plug inserts, advanced model design, Auto-CAD, Pro-E software and the ISO 9001:2008 international quality management all greatly contribute to high quality and competitive price.
Our main products include hollow crimping pin, AC power plug insert, Schuko Plug, vde plug, European plug, two pin or three pin plug insert, plug part, plug pin, audio plug, Rca plug, male plug, male insert, pin insert, cable plug, electrical plug, which are applicable to different Standard wires, cables, power cords, cord sets, sockets, outlets and extension cords, AC and DC connector series.
In addition, We meet many international plugs approval from Germany (VDE), Turkey (TSE), France (NF), Norway (Nemko), Denmark (Demko), Finland (Fimko), Sweden (Semko), Netherlands (Kema),Belgium (CEBEC),Austria(OVE), Italy(IMQ), Switzerland (SEV), South-Africa (SABS), SII (Israel), NEMA(USA), JISC(Japan), BSMI (Taiwan), CCC (China), IRAM (Argentina), ASTA (UK) standard plugs.
Competitive Advantage:
1>the invention of hollow brass pin
2>power plug insert with hollow brass pin of competitive price and superior quality.
3>good plating techniques.
4>excellent R&D department.
5>large-scale production,timely delivery
6>good after-sale service.
|
CODE |
YS-001AA-WO |
YS-001AA-BO |
|
Color |
White |
Black |
|
Invention Patent |
Cylinder Hollow Plug Pin |
|
Patent no. |
1)ZL 2007 2 0114681.X |
|
2)ZL 2008 1 0062850.9 |
|
3)ZL 2007 1 0071130.4 |
|
Feature |
hollow brass pin filled with PBT |
|
certificate |
VDE,ROHS,REACH |
|
Material |
H65 brass stripe,PBT |
|
Description |
4.8mm two-pin plug insert,with earthing contact |
|
Standard |
CEE-7/4,IEC/EN60884 |
|
Current/Voltage |
10/16A/250 |
|
Applicable Size |
0.75~1.5mm 2 |
|
Quality |
1.Superior materials,H65 brass stripes and G30 PBT |
|
2.Excellent techniques and invention |
|
3.Good business partner |
|
4.Perfect after-sale service. |
YINGSHENG IMPORT&EXPORT CO; Ltd registered in Hon g Kong, 2013. Sales for its products(Power Plug Insert, RCA Plug, Phone Plug) made in mainland China, which had 11 years' professional production experience.
Our Electronic Components Factory is a leading manufacturer of power plug insert, Audio & Video plug and other Connectors & Terminals. The plug inserts are featured by seamless hollow brass pins. And we are the unique manufactory whose hollow plug inserts passed VDE certifications in the world. Hollow-pin plug inserts are also strictly compliant with Lead-free(Pb<100ppm), RoHS, REACH, PAHs and Phthalate, etc. We meet many international plugs approval from Germany (VDE), Turkey (TSE), France (NF), Norway (Nemko), Denmark (Demko), Finland (Fimko), Sweden (Semko), Netherlands (Kema), Belgium (CEBEC), Austria(OVE), Italy(IMQ), Switzerland (SEV), South-Africa (SABS), SII (Israel).
With good technical support and management, the company also has fine facilities. For instance, the inner testing laboratory for testing purpose is equipped with direct-reading spectrometers, tensile testing machines, coordinate measuring machine, metallography automatic analysis machine, roundness measuring instrument and so on, guaranteeing the quality of every aspects of the casting procedure from the raw materials to the end products., advanced model design, Auto-CAD, PRO-E software and the ISO 9001: 2008 international quality management all greatly contribute to high quality and competitive price.
Keep any customer order in short delivery time.
We sincerely would like to build cooperation with customers relying on our strong teams, advanced equipments, good quality products and competitive prices.
