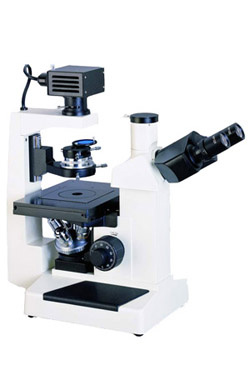

Product Specifications
Product Description
Wide Field Plane-scope Eyepieces WF10x
Long Working distance Plan Achromatic Objectives
PL L10x/0. 25, PL L 25x/0. 40, PL L40X/0. 6, Phase contrast PL L10X/0. 25
Coaxial coarse/fine focus system, with tension adjustable and limit stopper,
Minimum division of fine focusing: 2μm
Compensation Trinocular Head Inclined 30, 360Rotatble
Double Layers Mechanical Stage: 200x152mm,
Moving range: 75mm x 30mm
Ground glass, Blue filter, Green filter
Impellent style phase contrast unit with filter tray
10X Phase plate, Centering telescope,
Condenser rack & pinion adjustable, NA=0. 4, working distance: 30mm
Match to install 72mm or 77mmX33mm culture utensil
Match to install 68mm or 20mm culture utensil
Built-in Adjustable Brightness Halogen Lamp 6V/20W
Ningbo Wason Optical Instrument Co., Ltd. is specializing in biological microscope as monocular head microscope, binocular head microscope, mult viewing microscope, inverted microscope, metallurgical microscope, reflected fluorescent microscope, and stereo microscope as change steps stereo microscope, zoom stereo microscope.
Wason corporation administers strictly in the light of ISO9001 and performs the criterion of nation and international in point. Wason produce all kinds of biological microscope and stereo microscope. They are characterized by long working distance. The definition, resolution, depth of filed and the coaxial illumination is the leader in the same internal industry. Wason microscope can be applied in biological medicine, industry, environmental protectipn, material, police, microelectronics and exact manufactory.
Our products rang from XSP series of bilogical microscope, XSZ series of biological microscope, CTX seriesof change steps stereo microscope, ZTX series of zoom stereo microscope, LCD visual inspection microscope have so far been exported to over 20 countries.
