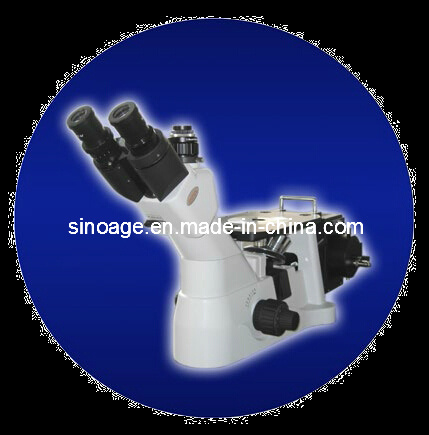

Inverted Metallrugical Microscope SD300M
SD300M microscope is a trinocular inverted metallurgical microscope which has many advantages as following:
Infinite focusing optics provides high resolution image.
Objective: Long viewing distance type.
Wide field of view: 20mm
The three-plate mechanical stage can accept nearly all sample sizes and also allows non-destructive microscope examination of large components.
SADT optics provides high NA and long viewing distance.
SADT optics delivers bright, high-resolution images. New optical coating improve dustproof and dampproof in SD300M. The large stage surface enables observation of heavy samples. The Three-plate structure gives the microscope stable and superior Durability.
|
Model |
SD300M |
|
Optical |
SADT infinity system |
|
Observation method |
Inverted, brightfield, polarizing |
|
Magnification |
50X, 100X, 200X, 500X, 1000X |
|
Illuminator |
12V, 50W |
|
Stage |
247x270mm |
|
Focus |
Graduation: 1um |
|
Eyepiece |
10X(F. N20) |
|
Nosepiece |
5 |
|
Objective |
5X/0.13, WD11.5
10X/0.3, WD6.8
20X/0.4, WD11.1
50X0.55, WD8.2
100X/0.8, WD2.0(spring) |
|
Field diaphram |
1 |
|
Mirror |
1 |
|
Power supply |
90-240V |
|
Dimension (mm) |
700x320x400 |
|
Weight |
15Kgs |
