Yueqing Sanshe Semiconductor Factory >> Inverter Thyristor Module (SQL40A1200V)

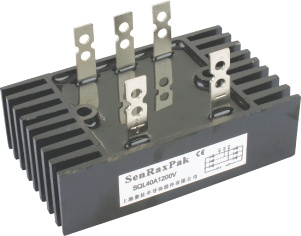

Inverter Thyristor Module (SQL40A1200V)

Name: Inverter Thyristor Module (SQL40A1200V)
Brand: china-manufacturer-directory.com
SKU: 681954105
Availability: InStock
Rating: 4.7 (121 reviews)

Supplier:	Yueqing Sanshe Semiconductor Factory
Price:	Negotiable/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SQL40A1200V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Logic IC
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	QFP/PFP
Batch Number:	2014+
Brand:	Saishe

Product Description

Features

Bridge rectifier module
Current: 2-250
RRM: 100-1600V
Welding technique under the production of vacuum and hydrogen gas
Electrically-isolated chip and baseboard 2500V AC voltage
Bridge rectifier module

BASIC INFO.

Model NO.: SQL10A SQL20A SQL40A SQL50A SQL60A SQL100A SQL150

Manufacturing Technology:Logic IC

Material:Element Semiconductor

Type:Intrinsic Semiconductor

Color:Silver

Weight:1.2kg

Current:10A-300A

Voltage:100-1600

Rectifier Type:Three Phase

Export Markets:Global

Supply Voltage:Standard

Products Status:in Stock

Warranty Period:18 Month

Certificates:Ets ISO9001: 2000 CQC CE

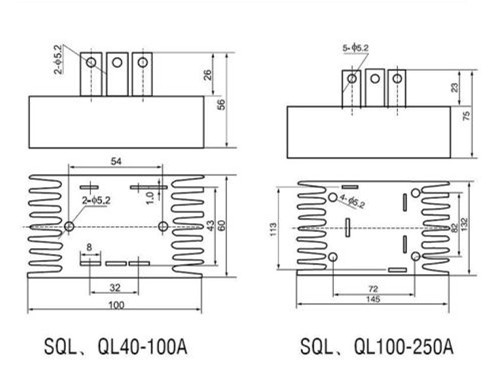

Type	Id		IF(AV)	VRRM	IRRM	VISOL	Outline
	A		A	V	mA	V
SQL10A		10	12	100~1600	7	2500	32x60x25
SQL20A		20	16	100~1600	7	2500	32x60x25
SQL40A		40	14	100~1600	7	2500	60x100x55
SQL50A		50	18	100~1600	7	2500	60x100x55
SQL60A		60	20	100~1600	7	2500	60x100x55
SQL100A		100	34	100~1600	7	2500	60x100x55
SQL150A		150	50	100~1600	10	2500	132x145x75
SQL200A		200	67	100~1600	10	2500	132x145x75
SQL250A		250	84	100~1600	10	2500	132x145x75
SQL300A		300	92	100~1600	10	2500	132x145x75

Yueqing Sanshe Semiconductor Factory has been specialized in manufacturing power module, such as SCR module, silicon rectifying module, high-power resistance, solid state relay, etc. It is a company that has been engaged in the research, development, production and sale of electric power semiconductors. Not only does our company have strong technical force, but also perfect production line. Besides, we have first-rate testing facilities. And all of our products are stable in performance and reliable in quality.

We have acquired ISO9001 quality system certification and CE certification. Our products are widely used in replacing similar brand name products from abroad, which can help users save cost, and they have been enjoying great popularity among the users.

We are willing to establish long-term business relationship with all customers on the basis of honesty, trustworthiness, deploitation and innovative entrepreneurship.
