Product Specifications
| Prod Model: |
TF-A6UW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Single Colour: |
768X32;384X64 |
| Double Colour: |
384X32;192X64 |
| Task: |
Program |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
FCC |
| Condition: |
Used |
| Customized: |
Non-Customized |
| Structure: |
PCB |
| Mathematical Model: |
All |
| Material: |
Mobile Phone |
Product Description

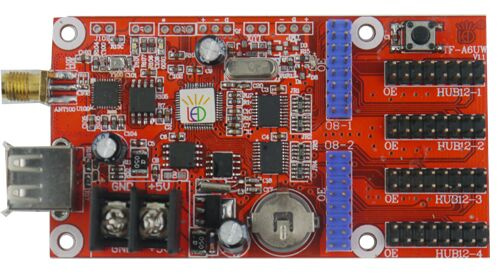

Model
State
TF-A6UW
Batch supply

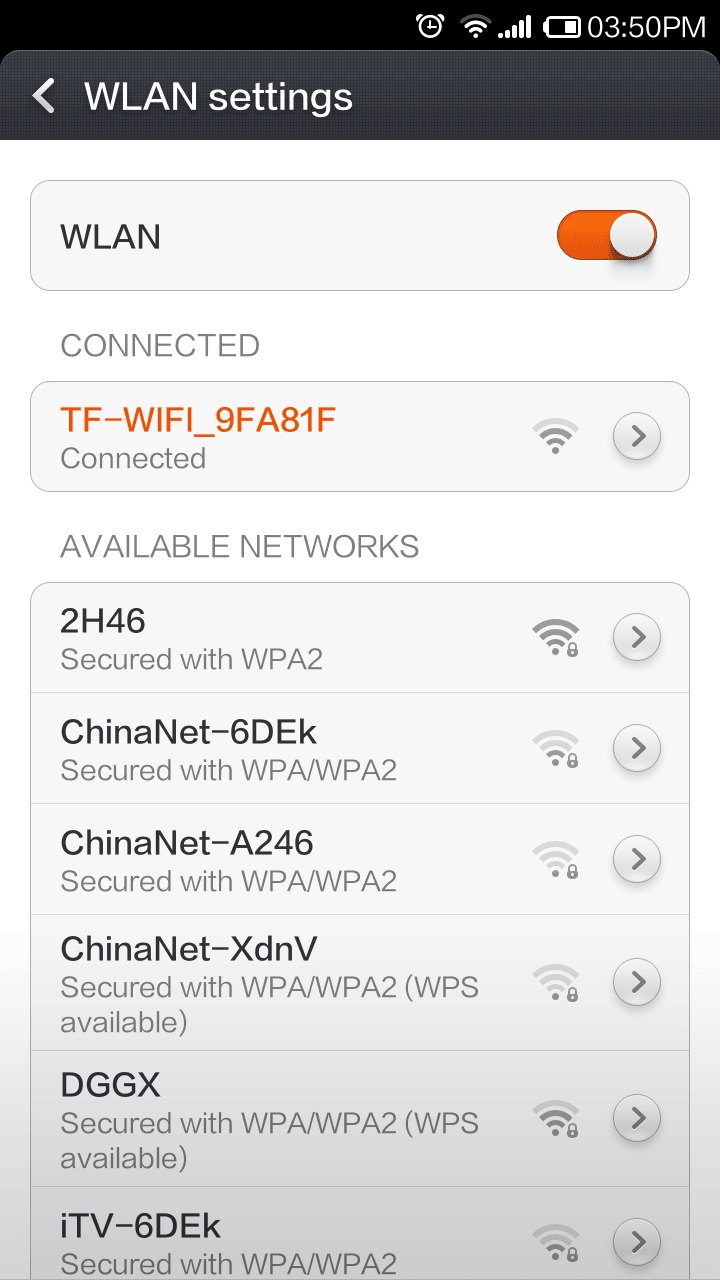

Function introduction More arbitrary division,dazzle colour border area,WIFI communication
Usage indoor/outdoor
Pixel Single colour 768x32;384x64;Double colour 384x32;192x64
USB fuction USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Ports two 08 port; four 12 ports
Scanning mode support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage 2M
Program number Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.(Quantity in storage space under the premise of memory)
Display rain,fountain,scroll and much more
Border support many Color border,Picture border
Flash format support GIF,SWF
Image format support BMP,JPG,GIF,WMF,ICO
Communication way Stand-alone,LAN,Intenet remote cluster management
Brightness Level 16 highlighted,support manual
screen switch manual
Test buttons Test buttons on-board,can switch over to test mode.
Extension function: Temperature sensor/Temperature&humidity sensor(Diagram for connection),Monochrome expand height,Through to 75 full-color interface.
Electrical parameters +5V DC(5.0V~6V),Power consumption<3W
Working temperature -30ºC~70ºC
Size 56mm*88mm
Shenzhen LongGreat Electronic Technology Co., Ltd. LongGreat is a production, research and development, sales and service as one of the LED control system supplier. Major R & D LED control card, bar screen control card, LED display control card, wireless LED system, LED industry software.
Founded in 2008, has carefully created a background of senior industry R & D team with deep industry accumulation, professional vision, technical skills quickly started the brand in the field of LED control. With system integrators and LED display manufacturers are exported to Europe, America, Japan and other developed countries, and has been set up in major cities and special sales points agents. Company not only provides professional LED control card applications research and development services, and also established a perfect after-sale service system protection, and customer win-win and common development philosophy, penetrate all aspects of company operations.
In 2011, the company introduced a new generation of any Division Series LED control card - "blue-hyun card" to cover the serial LED control card, U disk LED control card, Ethernet port LED control card, wireless LED control system product line more complete, more powerful.
