FEATURES OF A STYLE(11MM)
- Light guide plate with 85% availability adopted to make the light well distributed;
- High quality aluminum shell adopted to settle for LED heat releasing and to ensure LED life time;
- Imported LED chip ( SMD5630 with Epistar chip),high brightness,
- energy saving up to 60%;
- Excellent heat dissipation structure, long life span, normal use can
- reach over 50,000hours;
- High CRI to show the real color of goods and environment;
- ultra-thin structure in design, succinct and generous;
- Lead free, eco-friendly, conforming to the requirements of ROHS;
- Wide voltage input, swift start, no flicker, no dazzle and no tingle;
- The panel light can be suspended or recessed, easy and quick.
FEATURES OF B STYLE(12.5MM)
- IP65
- Imported Sumsung or Seoul SMD5630 with LM-80 and Mitsubishi LGP adopted
- MOSO UL external constant-current driver adopted, with power factor over 0.95
- Mitsubishi LGP adopted, laser Printer to make sure LGP avoid turning yellow during 5 years using;
- High CRI( >80 ) to show the real color of goods and environment
- There are WW(2800-3200K), NW(3800-4200K),PW(4800-5300K) and CW(6000-7000K) available
- Baseboard heat dissipation structure, long life span,normal use can reach over 50,000hours
- Diversified installation methods can meet customers requirments.
- The frame of S10 panels can also be made as aluminum S07 panel lights. No exta money will be charged.
MAINTENANCE AND CARE
- The product does not require any maintenace. You should never take it apart. The LED used are permanently installed; they cannot be replaced.
- Before cleaning the product it must be disconnected from the power supply. Unplug the
mains plug from the power supply or switch off the mains voltage.
- Do not press too strongly on the diffuser plate of the LED panel as this may cause scratches
or other damage.
- Dust can easily be removed using a clean, soft brush and a vacuum cleaner
APPLICATIONS
- Hotels Schools Hospitals Factories or offices Subway
- Some other commercial lighting Residential or public facilities
- Everywhere for energy-saving and high Ra lighting area300*300*12mm LED Panel Light (295x295x12.5mm) |
Model NO. | Products Parameters |
IS-33-18W-B2 | LED quantity | Lighting model | Power (excluding driver ) | Input Vol. | Luminous flux | LED luminous efficiency | Beam angle | Housing color | MOQ |
48 pcs | 2 sides | 18W | AC100-277V | 1200±200lm | 70±5lm/w | >110° | Silver | 100pcs |
IS-33-36W-B4 | LED quantity | Lighting model | Power (excluding driver ) | Input Vol. | Luminous flux | LED luminous efficiency | Beam angle | Housing color | MOQ |
96 pcs | 4 sides | 36W | AC100-277V | 2400±200lm | 70±5lm/w | >110° | Silver | 100pcs |
Name | IS-LED Panel Light |
Lighting Source | SMD5630 |
LED Chip Brand | Samsung/Seoul/Epistar |
LED Quantity | 48/96pcs |
Driver Brand | UL External Constant-Current Driver |
Power Consumption | 18W/36W |
Input Voltage | AC100-240V |
Working Voltage | 30-42V |
Constant Current | 450MA/900MA |
LED Luminous Efficiency | 70+5lm/w |
Power Factor | >0.95 |
LED Life Expectancy | 50000hours |
Beam Angle | 120° |
Luminous Flux | 1200+200lm/2400+200lm |
Color Temperature | WW/NW/CW |
Protection Grade(IP) | Ip20 IP65 |
Color Rendering Index(Ra) | >80 |
Temperature Rising | Pass according to En60598 |
Operation Temperature | -10°~40° |
Relative Humidity | Pass according to En60598 |
Fixture Material | Junction Box, Hanglig Cable, Screws |
Cover Brand | Al 6063 |
Housing Color | Silver/White |

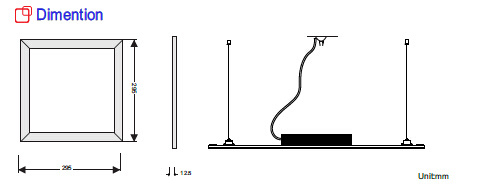

Dimension/Size | 300x300x11mm/300x300x12.5mm |
Net Weight | 1.2kg |
Shock Test | 0.35-0.5Nm |
Insulation Class | ClassII |
Certification | TUV/CE/FCC/PSE/RoHS/UL |
Warranty | 3years |
