Product Specifications
| Prod Model: |
Ip65 Solenoid Coil for refrigeration part |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enclosure: |
IP65 |
| Coil Standard: |
DIN43650 |
| UL Class: |
H |
| Ambient Temperature: |
-40c~+55c |
| Permissible Voltage Variation: |
-15%~+10% |
| DC: |
12V, 24V |
| AC: |
24V, 36V, 110V, 220V |
| Power: |
Model 210#,220# AC:18va DC:20W |
| Coil Power: |
Model 300# AC:30-35 Va DC:20W |
| Approvals: |
CE, CQC, UL/cUL |
Product Description

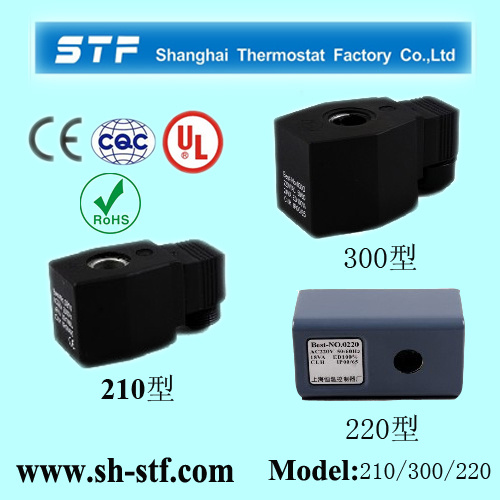

FDF Solenoid Coil
General Characteristics
Class :F(UL Class:H)
Enclosure:IP65
Ambient temperature: -40ºC~+55ºC
Permissible voltage variation: -15%~+10%
Power:
Model 210#,220# AC:18VA DC:20W
Model 300# AC:30-35 VA DC:20W
Voltage type:
AC: 24V, 36V, 110V, 220V
DC: 12V, 24V,
Approvals:
CE/CQC/UL/CUL
Installation
l The valve should be installed in horizontal pipe line under vertical position. The flow direction must be in the arrow direction.
l The supply voltage must meet the rated input voltage shown on the label of the coil. Coil taking away from valve when energized in coil is forbidden.
l When brazing the valve with connect tube in system ,follow points are very important.
l Before brazing, coil must be taken away and with wet rags covering the valve body to avoid damage.
l The brazing flame must be avoided facing the valve body.
l It is better to use low temperature type silver to braze.
l For the valve with hand lever ,you must turn the lever firstly ,then make leakage test to protect diaphragm.
Medium Temperature(C) | -25_105 |
| Rated power | AC(V) | 24,36,110,220 |
| DC(V) | 12,24, 110,220 |
