Product Specifications
| Prod Model: |
TMS-S495TP-KP-DT-FN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
495X150mm |
| Mouse Type: |
Touchpad |
| Stroke Travel: |
2.0mm |
| Key Mechanism: |
Silicone Rubber |
| Switch Life: |
More Than 2 Milion of Per Key |
| Protection Level: |
NEMA4/IP65 |
| Certifications: |
CE, FCC, RoHS |
| Certification: |
FCC |
Product Description

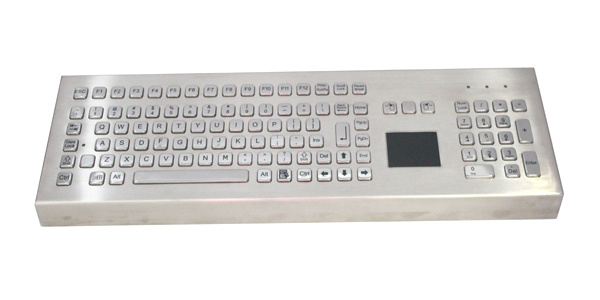

107 Keys vandal proof IP65 industrial stainless steel keyboard with integrated rugged touchpad with function keys (F1, F2, F3, ...F10, F11, F12) are on the top line, and numeric keypad for easy operation, stand alone desk top version.
LThis Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas,
LIdeal for applications in the harshest conditions, it meets NEMA 4, 4X and IP 65 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.
LPS/2 or USB connector is available.
LAll international language lay-out are optional.
LIt is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, UNIX, Mac OSX
MECHANICAL DATA
Keys: 107 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Stroke travel: 2.0mm
Switch life: More than 1 million of per key
Front panel: Made of 1.5mm thickness super quality brushed stainless steel
Customized layout is available
G. W.: 2.8KGs
ELECTRICAL DATA
Supply Voltage: 5.0V DC± 5%
Current Rating: Appr. 30mA
EMC Standard: It is compliance with the council EMC directive 2004/108/EC
EN55022: 2006+A2: 2010
EN55024: 1998+A1: 2001+A2: 2003
Lifespan > 5 years
ENVIRONMENTAL ADAPTABILITY
Operating temperature: -20° C to +60° C
Storage temperature: -30° C to +70° C
Operating RH: 20-95%
Atmospheric pressure: 60-106Kpa.
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant: IK10
Key Lifespan >10 million actuations
MTBF >5, 0000H
MTTR <30min
