Product Specifications
| Prod Model: |
YSSWL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Watt: |
18/24/36W |
| Lumen: |
90-100 |
| Size: |
1m/1.5m |
| Material: |
Aluminum+Glass |
| Shell Color: |
Grey |
| Cct: |
2700-6500k/RGB |
| CRI: |
>65 |
| IP: |
IP65 |
| Power Factor: |
>0.9 |
| Usage: |
Outdoor |
| Emitting Color: |
RGB |
| IP Rating: |
IP65 |
| Diffuser: |
Tempered Glass |
| Beam Angle: |
15?? |
| Lifespan: |
30000 hours |
| Warranty: |
3 Years |
| Certification: |
SAA |
| Electric Current Type: |
DC |
| Power: |
9/12/18/24/36W |
| Input Voltage: |
AC100-240V/DC24V |
Product Description

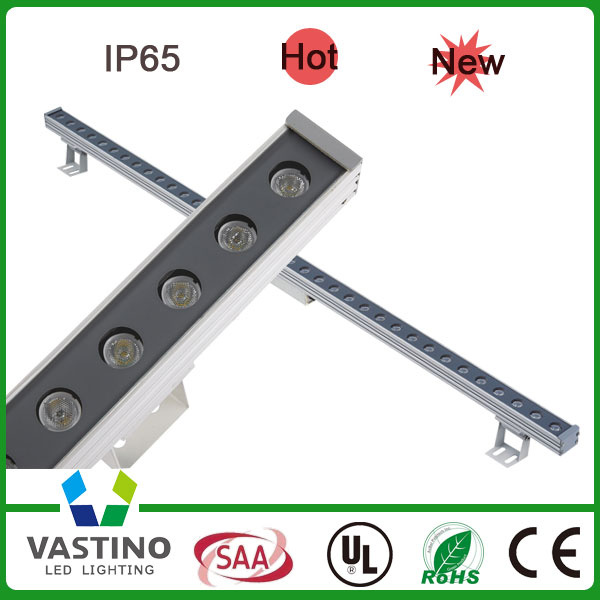

IP65 Waterproof led wall washer light with 3 years warranty
1.Product Overview:
This light body is made up of high quality aluminum alloy material, the use of extrusion, the surface coating process. LED low light decay, high luminous efficiency of highpower LED as light source, energy saving significant, long life. Driven by highprecision, high efficiency constant current drive power,
stable performa nce, no flicker.
2.Product Feature:
1.Products are made of light single highlighted SMD 3030 lamp beads, and international brands Osram.
2.Power An external, easy to replace
3.High energy efficiency, light uniformity, increase the hood, reduce light pollution
4.By a special process encapsulation, durable, life of up to 30,000 hours
5.Green, no ultraviolet, infrared, thermal radiation and mercury pollution
6.As the cold light source, LED lighting will not produce fading phenomenon after long time use
7.High transmittance glass face cover
8.A variety of light and color options, red, yellow, blue, green, full-color, white, etc;
9.Fast response, no flicker, glare small
10.Solid light source, shock resistance and convenient for transportation and install, safe
11.Directional light, easy to control the light, effectively improve the efficiency of the lighting system
12.Modeling new fashion, close to customer needs and feelings with more user-friendly design elements and technology
13.Optional DMX512 control, showing the effect of a variety of Symphony, gives a beautiful enjoyment
Basic parameters
| Model | Led source Qty | Color | Size(mm) | Material | IP Grade | Weight (Kg) |
| YSWWL-09055-004 | 9PCS*SMD3030 | Grey | L500*W30*H23 | Aluminum +GL | IP65 | 0.8 |
| YSWWL-12055-004 | 12PCS*SMD3030 | L500*W30*H23 | 0.8 |
| YSWWL-18055-004 | 18PCS*SMD3030 | L500*W30*H23 | 0.8 |
| YSWWL-18055-004 | 18PCS*SMD3030 | L1000*W30*H23 | 1.4 |
| YSWWL-24055-004 | 24PCS*SMD3030 | L1000*W30*H23 | 1.4 |
| YSWWL-36055-004 | 36PCS*SMD3030 | L1000*W30*H23 | 1.4 |
Electrical parameters
| Model | Power(W) | Input Voltage(V) | Conversion efficiency | Power Factor |
| YSWWL-09055-004 | 9W | AC100-240V(main)
/DC24V | >87% | >0.95 |
| YSWWL-12055-004 | 12W |
| YSWWL-18055-004 | 18W |
| YSWWL-24055-004 | 24W |
| YSWWL-36055-004 | 36W |
Optical parameters
| Model | Color Temp.(K) | Illuminance (10/15/20/25/30)M | CRI | Beam angle (degree) |
| YSWWL-09055-004 | 2800-3000K
3800-4200K
6000-6500K
RGB | 40/16/8/6/4 Lux | >65 | 15°(15,30,45, 60) |
| YSWWL-12055-004 | 43/18/10/7/5 Lux |
| YSWWL-18055-004 | 50/21/12/8/6 Lux |
| YSWWL-18055-004 | 40/16/8/6/4 Lux |
| YSWWL-24055-004 | 43/18/10/7/5 Lux |
| YSWWL-36055-004 | 50/21/12/8/6 Lux |
Application
Widely used in single building, billboard. Historical buildings exterior lighting. Green landscape lighting, , indoor local lighting. Specialized medical facilities, cultural and other lighting. Bars, discos and other entertainment atmosphere lighting
