Product Specifications
| Prod Model: |
LPI-W053 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof Standard: |
IP67 |
| Customized: |
Yes |
| Application: |
Audio / Video Players |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
3V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
Product Description

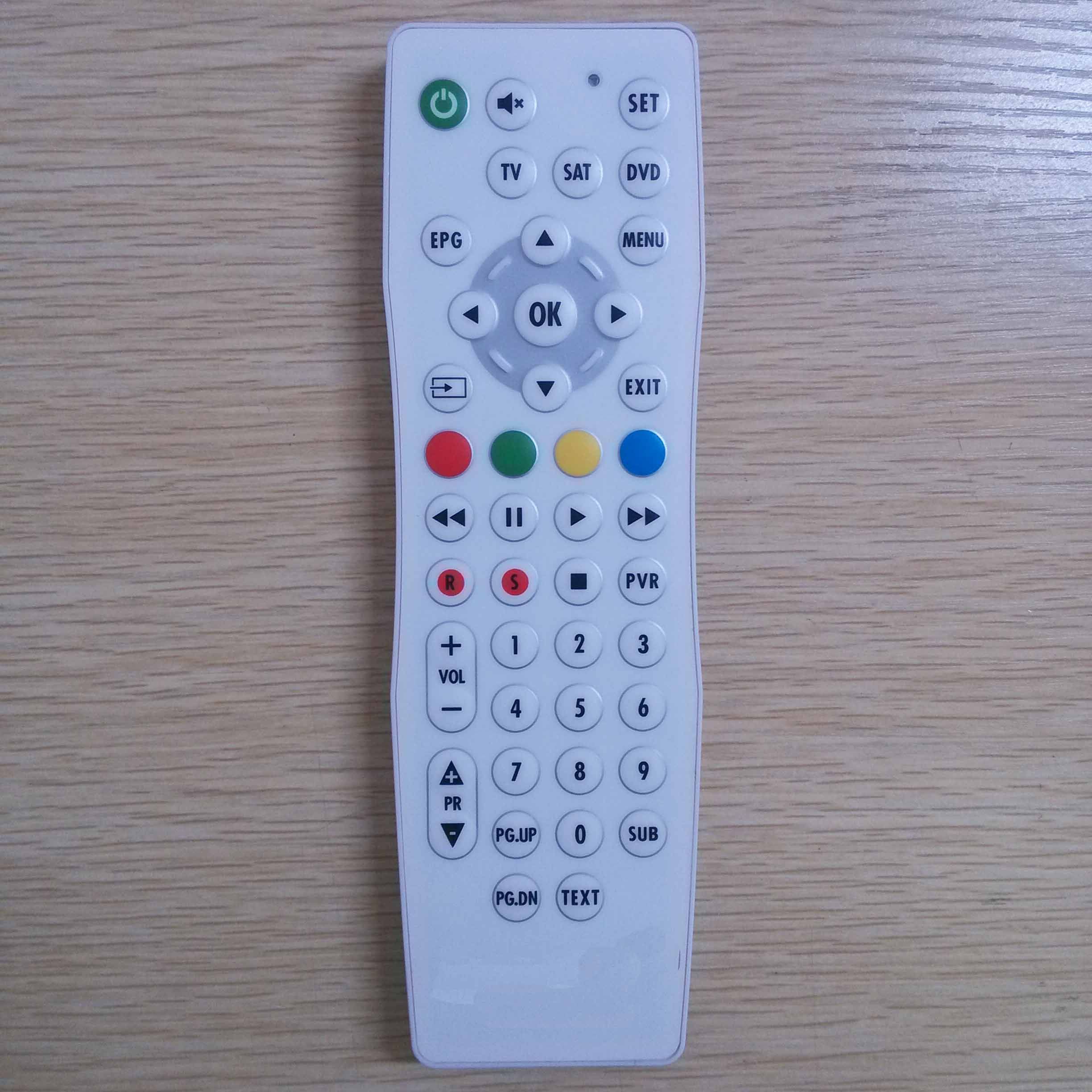

Waterproof Remote control; Wasserdicht Fernbedienung
Waterproof remote control, IP67 grade.
Perfect as application for light, SPA TV, LCD TV, BATHTOOM TV, OUTDOOR TV...
Specification: LPI-W053
| LPI-W053 | | | |
| | Small form factor remote control | | |
| | Waterproof IP67 | | |
| | IR Remote Controller | | |
| | Application: Bathroom LCD TV, Steam Room TV | | |
| | OEM & ODM are welcome | | |
| Specifications | | | |
| | Number of keys | | 1~53 |
| | Dimensions | | 175x52x12mm |
| | Case | | ABS Plastic |
| | Buttons Type | | PET Membrane |
| | Textplate | | YES |
| | Weight (incl. batteries) | | 53g |
| | Battery | | DC3.0V/CR2032 |
Size: L175 x W52 x H11mm
Battery: CR2032 brand long lifespan
Keys: From 1 to 53 max
Your artwork/logo, OEM available.
IC Protocol: Normal standard NEC format, 38kHz. Or pro
grammed code system
Contact us now for your own design to envalue your products.
Small order acceptable
1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms
