Product Specifications
| Prod Model: |
K-TEK-D399KP-FN-DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
Product Description

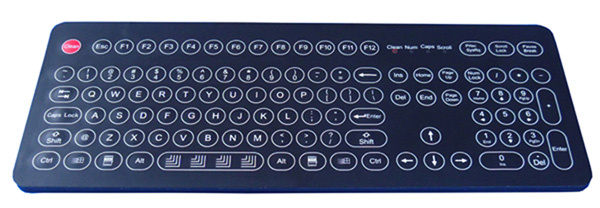

Model No: K-TEK-D399KP-FN-DT
Dimension: 399.0mm X 150.0mm X 20.0mm (L x W x H)
Description: 106 keys IP68 dynamic rated washable industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm Alumium plate with sand blasting & oxygenation treatment, standard alone movable desk top version with robust polycarbonate case.
APPLICATIONS:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
Lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: Mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc
OTHER INDUSTRIES
MAIN FEATURES:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The foil-covered aluminum front plate is mounted flush for easy cleaning.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
Clean key
-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime.
MECHANICAL DATA:
Number of Keys: 107
Key switch Technology: Metal dome key switch technology with short travel keys
Actuation Force: 1.0N for key 13.0mm X 13.0mm (press point)
Key Travel: 0.45mm
Key switch Lifetime: 3 mil. Operations
Protection Level: IP68, NEMA 4X
Mounting Type: Stand alone desk top.
Operating Temperature: -20 ° C to +50 ° C;
Colors: 4 (Blue, white, grey, black)
G. W.: 1.20KGs
Key Dimensions (print area): 13.0mm X 13.0mm
Dimensions: 399.0mm X 150.0mm X 20.0mm (L x W x H)
ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: Appr. 20mA
EMC Standard: It is compliance with the council IEC 61000-4-2: 2008; IEC 61000-4-3: 2006+AI: 2007+A2: 2010; IEC 61000-4-4: 2004
EMI: EN 55022: 2010
EMS: EN 55024: 2010
Lifespan > 3 years
Interface: PS2, USB available.
OS: All windows, Linux, Unit, Mac OSX
RELIABILITY:
RoHS, CE, FCC, ESD
Protection Level: IP68
Key Lifespan >3 million actuations
MTBF >50000H
MTTR <30min
