Iran Casting ED Painting Line Powder Coating System for Construction Machinery
| Price: |
US $ 10000-100000/Set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Iran Casting ED Painting Line Powder Coating System for Construction Machinery
Electrophoretic deposition (EPD), is a term for a broad range of industrial processes which includes electrocoating, e-coating, cathodic electrodeposition, anodic electrodeposition, and electrophoretic coating, or electrophoretic painting. A characteristic feature of this process is that colloidal particles suspended in a liquid medium migrate under the influence of an electric field (electrophoresis) and are deposited onto an electrode. All colloidal particles that can be used to form stable suspensions and that can carry a charge can be used in electrophoretic deposition. This includes materials such as polymers, pigments, dyes, ceramics and metals.
The process is useful for applying materials to any electrically conductive surface. The materials which are being deposited are the major determining factor in the actual processing conditions and equipment which may be used.
Technical advantages:
1. Non-poisonous
2. Easy automatic control
3. Water solubility
Operating principle:
Putting the workpieces and corresponding electrode into the water-soluble paint and connecting the electricity supply. The resin and fillers in the paint will separate out equably on the surfaces of the workpieces and deposit to form water-fast paint films on the physical and chemical effects of electric fields.

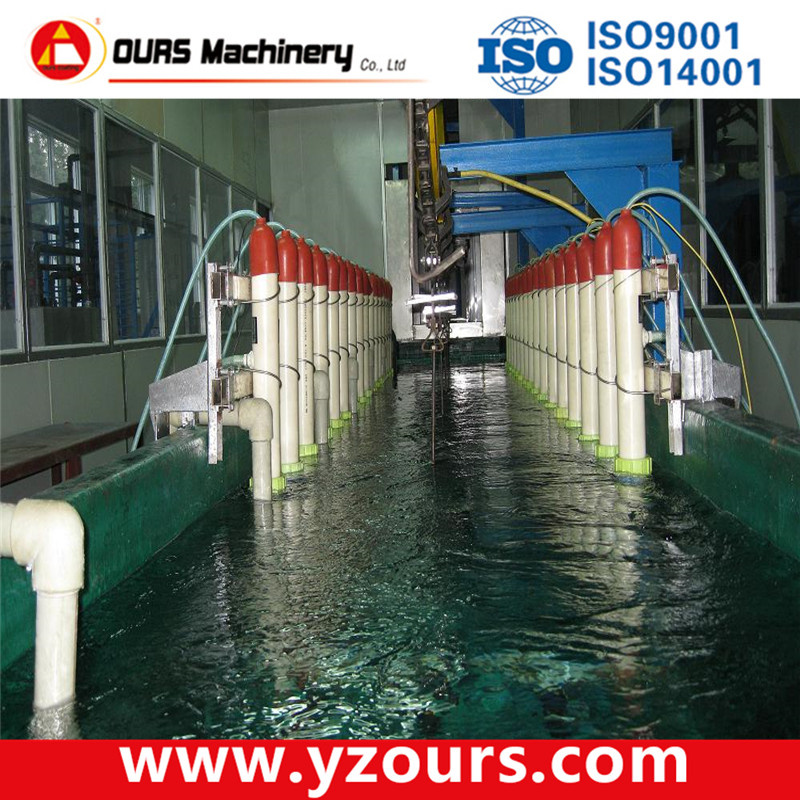

Main parts of the full line:
1. Pretreatment device
2. Electrophoretic tank system
3. Electrophoretic transferring tank system
4. Stirring apparatus
5. Filter system
6. Water washing system
7. Ultrafiltration system| No. | Item | Description |
| 1 | Voltage | Iron and steel:40~70V;Aluminum: 60~100V;Zinc: 70~85V |
| 2 | Electrophoresis time | 1~3 min for normal workpieces,3~4 min for large workpieces |
| 3 | Temperature of paint | 15~30 degree |
| 4 | PH value of paint | 7.5~8.5 |
| 5 | Distance between the workpieces and the cathode | More than 20 cm |
| Prod Model: |
OURS2015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
220V-380V |
| Power: |
50kw-200kw |
| Warranty: |
1 Year After Acceptance |
| Size: |
Customized |
| Type: |
High-Performance Low-Pressure Spray Equipment |
| Application: |
Porcelain Spraying Equipment |
| Certification: |
SGS |
| Method Type: |
Automatic |
Since 2006, Yangzhou OURS Machinery Co., Ltd., has been engaged in design, manufacture, installation of painting and environmental protection equipment.
We are a trust worthy supplier of world-renowned enterprises Sany Group and others large enterprises in China.
The company has passed the ISO9001 2008 quality management system certification and ISO14001 2004 Environment Management System certification.
Our main products are: Electrostatic spraying equipment, automatic lift type spray processing equipment, tank immersion pre-treatment devices, water curtain spray booth, water rotary spray booth, dry spray booth, Ω Electrostatic painting room, electric heating oil, gas, coal-fired hot air drying furnace, PLC automatic control system, shot blasting cleaning equipment, the anode and cathode electrophoresis equipment, advanced automotive spray paint room, conveying equipment, environmental equipment, painting equipment.
