Product Specifications
| Prod Model: |
QH-4C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Planer type Milling Machine |
| Object: |
Thread |
| Structure: |
Gantry |
| Controlling Mode: |
Program Control |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
Product Description

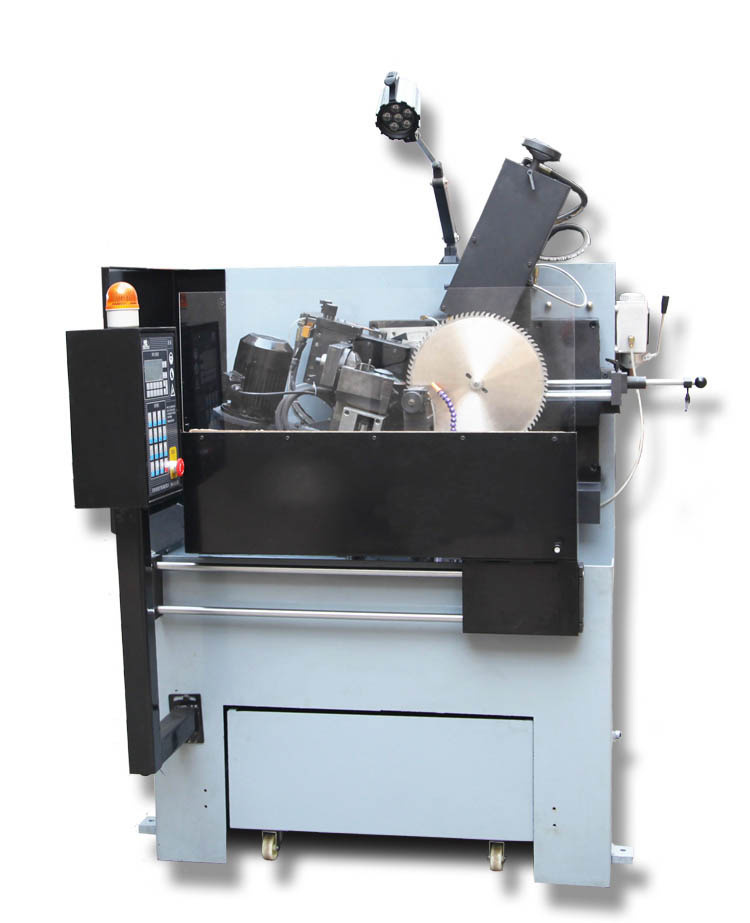

TCT saw blade sharpener machine
This machine mainly used for the complicated shapes of rake angle and clearance angle of all sorts of carbide circular saws.
1) Saw blade sharpener equipment has stepper motor for grinding wheel compensation system, suitable for complicated teeth grinding such high-low teeth.
2) According to different product requirements, saw blade sharpener machine can grind automatically by choosing different procedures.
3) automatic lubricating system for easy maintance, use-life of the machine is more long.
Advantage/Automatic
(1)The machine is a compact structure, economical, easy-operating machine and with PLC controller.
(2)The maximum for the saw blade outside diameter is up to 650mm and for chamfer and oblique angle grinding.
(3)The grinding wheel is adjusted as per scale by hand wheel. Feeding and grinding path are
controlled by hydraulic pressure.
(4)Easy-controlled operating platform, it is needed to input the number and tooth pitch, preset the path via the hand wheel ,then the grinder will operate automatically.
(5) It just needs the easy resetting for grinding the saw blades tooth(ATB,TCG, V-type and other Combination tooth).
Parameter Data
| Outer diameter | 100-810mm |
| Bore diameter | 10-220mm |
| Width of tooth | 5mm |
| Tooth pitch | 6-75mm |
| Hook angle | -6°-40° |
| Clearance angle | 0-45° |
| Tooth top | -5°-45° |
| Tooth surface | -5°-30° |
| Grinding path | 0-28mm |
| Grinding speed |
| Continuously variable | 0.5-6m m/s |
| Working speed | Up to 20t/min |
| Grinding wheel |
| Outer diameter | 125mm |
| Bore diameter | 32mm |
| Peripheral speed | 26m/s |
| Cooling water pump |
| Water pump flux | 50L/min |
| Capacity of coolant tank | 85L |
| Total |
| Total power | 1.75KW |
| Net weight | 1100kg |
| Dimension(L*W*H) | 1400*1200*1800mm |
