Product Specifications
| Prod Model: |
cr-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width: |
Under 2m Commonly |
| Material: |
Stainless Steel Wire |
| Application: |
Filter |
| Hole Shape: |
Square |
| Weave Technique: |
Plain Weave |
| Weave Method: |
Locking Bend |
| Wire Diameter: |
6.0mm |
| Feature: |
Waterproof |
| Color: |
Red |
| Certification: |
CE |
| Packing: |
Pallet |
Product Description

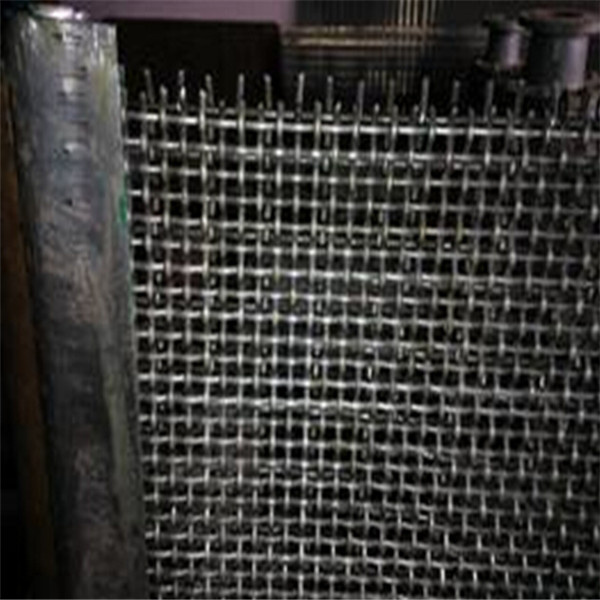

Sand sieving mesh, sieving screen mesh factory
1.Screen mesh description:
Screen mesh is the wear parts of the vibrating screen.The working life of the screen mesh is depend on the stone type and the vibrating screen working time.
Currently we are supplying screens:
Material: Mild steel,Medium carbon steel,High carbon steel,Manganese wire, Spring steel,High tensile wire,Stainless steel etc.
Mesh: Square mesh and Triple Slot mesh.
Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 200mm with wires 1.4mm to 12.7mm thick;
Pecification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.
Thinner wire screen can also be supplied in rolls.
Screens are consumables,so we focus on quality to win long term business cooperation
wire dia: 0.5-16mm
width: under 2m commonly
2.Feature
Large percentage open area
Fit for any tensioning hooks and any deck of the screen
Quick and easy change out of deck
A low initial cost compared to other media available
Screen mesh are used in vibtrating screen and widely used for grading and screening materials in he following fields:minerals,quarry,building materials,water conservanc and hydropower,transportation,chemical industry,smelting,and so on.
Application of sand sieving mesh, sieving screen mesh:
cement industry
stone crushers
coal feeders
machinery belt guards
component trays
3.structural drawing( The hole size of mesh is able to be customized apart form standard configuration )
Following are some the strandard size for the screen and more size about the model and the wire diateter and the output size,please be free contact with us.
Mining screen mesh/ sand screen mesh(hook screen mesh)
Wire diameter(mm) |
Mesh Size(mm) |
Width (m) X Length (m) (in rolls/sheet) |
12.0 |
100×100 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
12.0 |
80×80 |
1.0MX2.0M/15M /1.5Mx2M/2X4M |
12.0 |
50×50 |
1.0MX2.0M/15M /1.5Mx2M/2X4M |
10.0 |
80×80 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
10.0 |
60×60 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
10.0 |
40×40 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
8.0 |
60×60 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
8.0 |
40×40 |
1.0MX2.0M /15M1.5Mx2M/2X4M |
8.0 |
25×25 |
1.0MX2.0M /15M1.5Mx2M/2X4M |
6.0 |
40×40 |
1.0MX2.0M /15M1.5Mx2M/2X4M |
6.0 |
30×30 |
1.0MX2.0M /15M1.5Mx2M/2X4M |
6.0 |
20×20 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
5.0 |
30×30 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
5.0 |
20×20 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
5.0 |
15×15 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
4.0 |
20×20 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
4.0 |
15×15 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
4.0 |
10×10 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
3.0 |
15×15 |
1.0MX2.0M /15M1.5Mx2M/2X4M |
3.0 |
10×10 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
3.0 |
5.0×5.0 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
2.0 |
8.0×8.0 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
2.0 |
5.0×5.0 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
1.5 |
5.0×5.0 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
1.5 |
4.0×4.0 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
1.0 |
3.0×3.0 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
0.7 |
1.5×1.5 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
0.45 |
0.9x0.9 |
1.0MX2.0M /15M/1.5Mx2M/2X4M |
We can produce as clients' specific requirement.
