Product Specifications
| Prod Model: |
SL-T26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

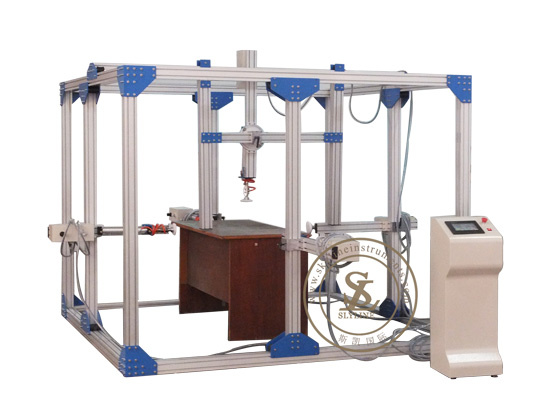

Table Integrated Test Machine
This test machine used for testing the strength and stability of tables and trollys. Can do following testing
Strength testing
1. Vertical static load test
2. Sustained load test
3. Horizontal static load test
4. Vertical impact test
Stability Testing:
1. Vertical stability test
2. Horizontal impact test.
Testing standard IS5967
Technical Parameter
Basic Test Frame: 2.5X2.5X2m, be made of 80X80mm Alu. Material
Load air cylinder: Diameter 50mm, 4 PCS, stroke 300mm, max load force up to 1500N
Impact cylinder: Diameter 50mm, 1PCS, stroke 400mm
Load air cylinder: Diameter 80mm, 1PCS, stroke 500mm, max load force up to 2500N
Force sensor: High precision sensor, capacity 2KN, 4 PCS; 5KN, 1 PCS
Control way: Touch screen + PLC control
Counter: 0~999999 times (can by adjusted)
Force adjust: Precision pressure valve equipment with sensor to disply
Air supply: 7kgf/cm^2
Power: 1∮ AC 220V 50Hz 5A
Features
1. Use high quality Alu. Material to make the frames, elegant appearance
2. Testing frames use sheave structure, can be adjusted to fit different sample.
3. Bottom fix panel can be adjusted to fit different size sample
4. With PLC controller, easy operate
Testing Standards
EN 527-3, EN581-3 and BIFMA X5.1, IS5967
