ISC Silicon NPN Darlington Power Transistor (TIP120)
Product Specifications
| Prod Model: |
TIP120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Element Semiconductor |
| Type: |
N-type Semiconductor |
| Manufacturing Technology: |
Discrete Device |
Product Description

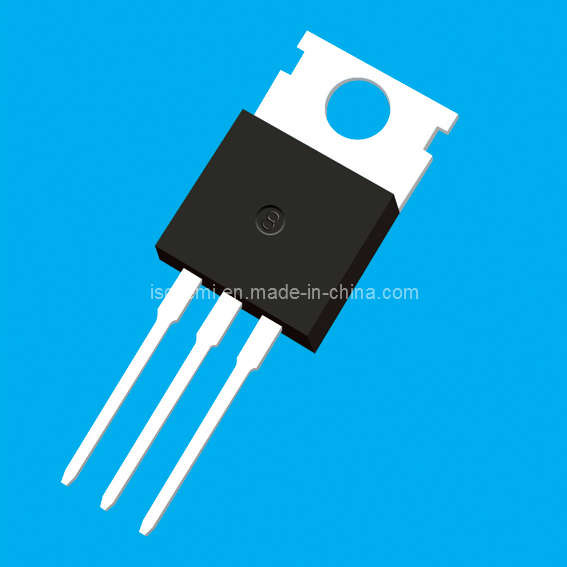

Isc Silicon NPN Darlington Power Transistor TIP120
DESCRIPTION
High DC Current Gain-
: HFE = 1000(Min)@ IC= 3A
Collector-Emitter Sustaining Voltage-
: VCEO(SUS) = 60V(Min)
Low Collector-Emitter Saturation Voltage-
: VCE(sat) = 2.0V(Max)@ IC= 3A
= 4.0V(Max)@ IC= 5A
Complement to Type TIP125
APPLICATIONS
Designed for general purpose amplifier and low speed Switching applications.
Inchange Semiconductor Company Limited being supplying power transistors for 20 years, ongoing relationships with more than 1000 major customers in over 30 countries.
Isc transistors product line:
2N, 2SA, 2SB, 2SC, 2SD, BD, BDS, BDT, BDV, BDW, BDX, BDY, BU, BUD, BUF, BUH, BUL, BUP, BUR, BUS, BUT, BUV, BUW, BUX, BUY, TIP, S, MJ, MJE series.
Isc main products:
High-power transistors, darlington power transistors, high-voltage transistors, high-frequency, high-gain transistors, switching transistors, RF, small-signal transistors, SCR, triac, mosfet, three-terminal regulator, IC, thick-film hybrid integrated circuits and so on.
ISC's main objective is to provide good quality products, on good prices and fast delivery. Satisfying customers' demands is our doing all the time.
