Product Description

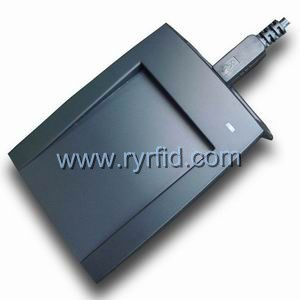

Radio Frequency Identity (RFID)
* Comply with ISO 14443A Protocol
*Support Mifare ® 1k S50, Mifare ® 1k S70, Mifare ® Ultralight, Mifare ® Ultralight C
* Support Mifare ® Desfire, Mifare ® PRO
* Support FM11RF08, BL75R06, ISSI4439
* Comply with ISO 14443B Protocol
* Support AT88RF020/SR176/SRIX4K/SLE66CL160S and CPU Cards in line with ISO14443B Protocol
* Support Reading the ID Number of Second-generation ID Card
* Comply with ISO 15693 Protocol
* Support TI RFID Tag-It HF
* Support NXP I. CODE SLI and other Chips in line with the ISO15693 Protocol
* Support Reading and Writing
* Support the Secondary Development
Physical Interface
* USB 2.0 with USB Cable 1.8 M long, Shielded and Magnetic
* RS 232 with Cable 1.5 M long
* TTL
RFID Antenna
* Integration Design of Reader and Antenna
Frequency
*13.56MHz (HF: High Frequency)
ESD
* 4KV
Operating System
* Microsoft Windows2000/XP/Vista/WIN 7/WIN CE
* Linux
Read / Write Distance
*ISO 14443A: 10CM (Depending on the Antenna Structure and the used Environment)
* ISO 14443B: 5CM (Depending on the Antenna Structure and the used Environment)
ISO 15693: 10 CM (Depending on the Antenna Structure and the used Environment)
Power
*5 Ma (Typical) Standby
* 90 Ma (Typical) Field Scanning
* 5V (Typical) Operation
Shape
* 110 * 80 * 26 (mm)
* About 100g
* Three-color LED
* Built-in Buzzer
Development Environment
* C + +, VC, Java, C #, Vb, Vb. Net, Delphi, etc.
Pplications:
*Application Software Recharge
* Consumer
* E-ticket
* Card
We have the complete production lines for RFID smart label, which are able to produce all kinds of RFID smart label with high-frequency or ultra-high frequency chips. We can use many different technologies, including copper etching, aluminum etching, and conductive silver paste and so on. We also grasp kinds of chip's package such as flip chip and bonding chip. Our mature and steady techniques make the high quality and the short lead time.
Our products are widely applied in: Warehousing, logistics, security, railway, tobacco management, medicine management, post, finance charges, and many other areas, exported to Japan, USA, Europe, India and other international markets, and receive the high praise in quality.
We have a powerful and professional in technology research and development team for RFID smart label, advanced equipments, and rich experience for production. We can also offer special services to meet your different needs.
