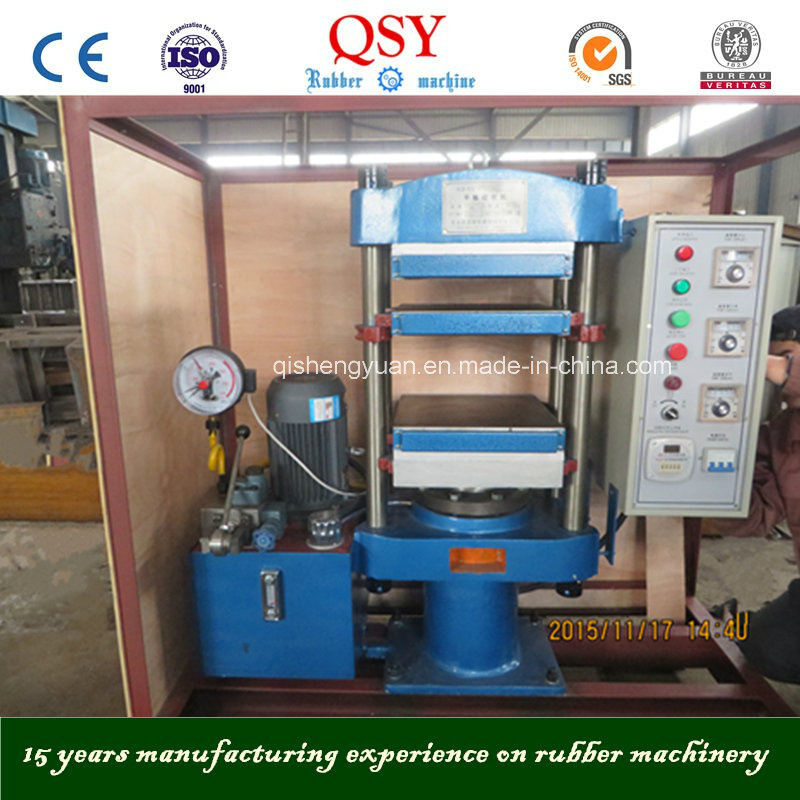

ISO and CE Plate vulcanizer/Vulcanizing press
we can design different types vulcanizer according to your need,including standard and non-standard rubber vulcanizer .If you need any detail informations please contact us.
1.Application
It is mainly in use of vulcanizing various kinds of rubber pattern products.
1) The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron, hydraulic cylinder material is ductile cast iron, weldment between top and bottom crossing.
2) Put holder and oil cylinder at the side of plate, push-off and reseting moulds are finished by oil cylinder moving when using. There is not ejecting holder in manual ejecting mould structure ,but still convenient when using.
3) Hydraulic system is consist of unipump, operating valve and control system.
4) Electric system is consist of oil pump motor and vulcanizing timing. When working pressure reach 22.1 mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time. When reach the setting time, it will warn automatically, push TA button can remove warning.
2.parameters of rubber vulcanizer
Parameters/ Version |
XLB-350*350*2 |
XLB-400*400*2 |
XLB -600*600*2 |
Mould closing force |
0.25 |
0.5 |
1.0 |
Plate spacing |
125 |
125 |
150 |
Plate work layer |
2 |
2 |
2 |
Platen unit area pressure |
2.04 |
3.1 |
2.78 |
Plunger stroke |
250 |
250 |
350 |
Heating way |
Electricity/ steam |
Electricity/ steam |
Electricity/ steam |
Main motor power |
2.2 |
2.2 |
2.2 |
Size (l*w*h) (mm) |
1450*400*1350 |
1500*750*1500 |
2000*700*1700 |
Weight (kg) |
800 |
1200 |
2000 |
Structure form |
Strain rod |
Strain rod |
Strain rod
|
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
