ISO Certification Purline Steel Structure Modular Building

Name: ISO Certification Purline Steel Structure Modular Building
Brand: China-Manufacturer-Directory.com
SKU: 754340925
Availability: InStock
Rating: 4.9 (72 reviews)

Supplier:	Foshan Shengbang Steel Structure Co., Ltd.
Price:	US $ 35-80/Square Meter
Min Order:	200/Square Meter
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	modular building
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Steel Structure
Size:	by Customized
Design:	by Customized
Specification:	by Customized
Color:	Red,Green,Brown,Black,Gery
Window:	PVC Window
Door:	Glass Door,Steel Door,Sandwich Pan
Connection:	High Strength Bolt
Painting:	Painting Automatic Powder Coating or Painting
Derusting:	Ball Blast
Material:	Steel Structure
Usage:	Prefabricated Buildings
Certification:	SGS
Customized:	Customized

Product Description

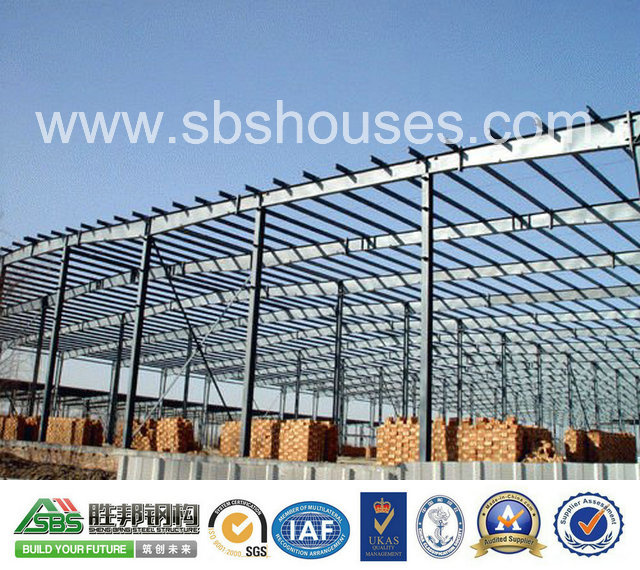

Metal Warehouse/Workshop building

Description:
Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors
Light steel structure building is widely used in warehouses, workshops, large factories, and more
Characteristics:
Wide span: Single span or multiple spans, the max span is 36m without middle column
Low cost: Unit price range from USD35/m2 to USD70/m2 according to customers request
Fast construction and easy installation
Long using lifespan: Up to 50 years
Others: Environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving
Materials:
The main frame (columns and beams) is made of welded H-style steel
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
The envelop construction net is made of cold form C-style purlins
The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by self-tapping nails
Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel, and more
Welcome to use our light steel structure system.

Material List For Prefabricated House
Main Steel Frame
Steel column	Fabricated by Q235 or Q345 Steel, 8080 or 100100 or 120120 or 150150 Square Tube, alkyd paiting, two primary painting, two finish painting.
Triangular Steel structure roof	Fabricated by Q235 or Q345 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Roof Purlin	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Ordinary bolt	4.8S, Galvanized
Roof and Wall
Roof Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Wall Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Edge Cover	0.4mm galvanized color steel , angle Alu.
Fasteners & Accessoreis	Nails\glue ect
Ceiling&Flooring
Ceiling	6mm gypsum board,with steel keel
Plywood	18mm film faced plywood
Floor feather	1.5mm PVC floor leather
Door and window
Door	(1) External door: Single open door. Insulated with opening dimension 950*2100mm, furnished with lock with 3keys. (2) Inner door: Single open door. Insulated steel door.
Window	4mm glass PVC window witn flying screem
Material List For Prefabricated House
Main Steel Frame
Steel column	Fabricated by Q235 or Q345 Steel, 8080 or 100100 or 120120 or 150150 Square Tube, alkyd paiting, two primary painting, two finish painting.
Triangular Steel structure roof	Fabricated by Q235 or Q345 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Roof Purlin	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Ordinary bolt	4.8S, Galvanized
Roof and Wall
Roof Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Wall Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Edge Cover	0.4mm galvanized color steel , angle Alu.
Fasteners & Accessoreis	Nails\glue ect
Ceiling&Flooring
Ceiling	6mm gypsum board,with steel keel
Plywood	18mm film faced plywood
Floor feather	1.5mm PVC floor leather
Door and window
Door	(1) External door: Single open door. Insulated with opening dimension 950*2100mm, furnished with lock with 3keys. (2) Inner door: Single open door. Insulated steel door.
Window	4mm glass PVC window witn flying screem
