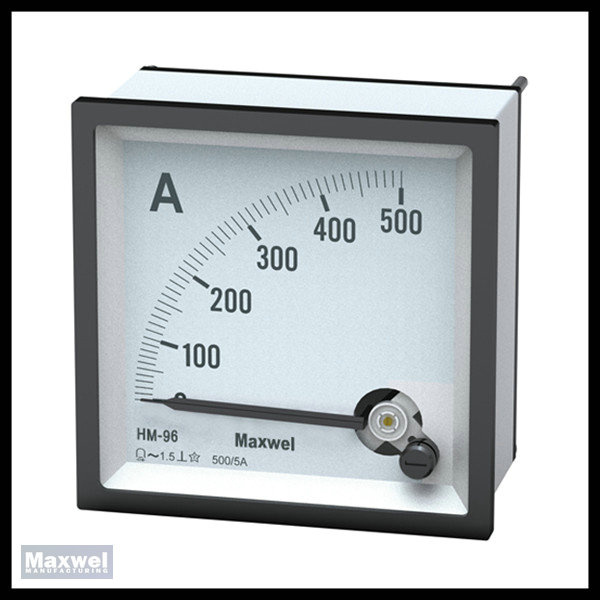

ISO Certified Analog Current Panel Meter

Product Specifications

Prod Model:	DE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size-1:	72*72
Size-2:	96*96
Accurancy:	3.0
Display Type:	Analog
Showing Minutes:	8 Min 5A/ 15min 5A/ 30 Min 5A
Phase:	Three
Type:	Analog Ammeter
Kind:	Rotating Coil
Application:	Electronic Equipment
Display:	Indicator
Installation:	Direct Connected
Theory:	Electronic Meter
Power Source:	AC Meter

Product Description

High quality AC Current Meter Analog Ammeter

AC Specification:
Model: DE-T96, DE-T72, DE-T48, DE-C96, DE-C72, DE-C48
Accuracy: Class 1.5
Specs: 0.1A, 0.5A, 1A, 1.5A, 3A, 5A, 7.5A, 10A, 20A, 25A, 30A, 50A, 75, 100A(use Ext. CT 5A)
Note: For 60/75/100A direct meter, the class in 2.5.
Advantage: The scale can be easily changed without opening the front frame so that the class will not be influenced.

DC Specification:
Model: DE-C96, DE-C72, DE-C48
Accuracy: Class 1.5
Specs: 25uA, 30uA, 50uA, 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA, 1A, 3A, 5A, 7.5A, 10A, 20A, 30A, 50A, 75A,100A(use with shunt)
Note: For 60/75/100A direct meter, the class in 2.5.
Advantage: The scale can be easily changed without opening the front frame so that the class will not be influenced.


Model	Unit	A	B	C	D	E	F
DE-96	mm	96	92	90	5.5	65	43
DE-72	mm	72	68	66	5.5	65	43
DE-48	mm	48	44	42	5.5	65	43
