Product Specifications
| Prod Model: |
SH-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Capacity Of Transformer: |
6300-63000 |
| The Primary Voltage Of Transformer: |
6-110 |
| Diameter Of Electrode: |
780-1500 |
| Heart Cycle Diameter: |
2000-4100 |
| Type: |
Steel-Making Equipment |
| Certification: |
ISO |
Product Description

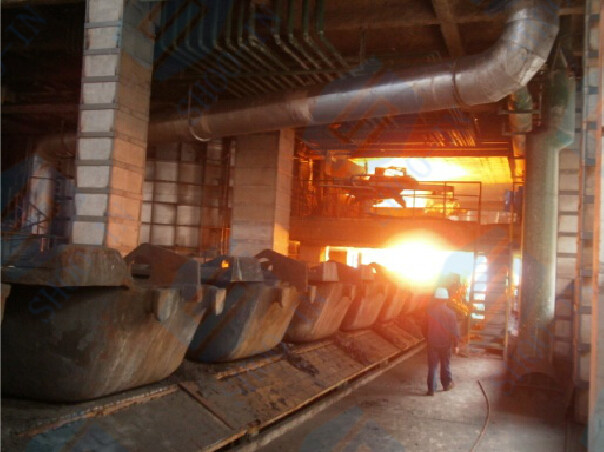

Submerged arc furnace is also called electric arc furnace or electric resistance furnace. It is mainly used to restore smelt ore as well as the material of carbonaceous reducing agent and rholite. Submerged arc furnace mainly produces silicon iron, ferromanganese iron, chromium iron, ferrotungsten, silicon-manganese alloy and other ferroalloys. The operating features are that carbon or magnesia refractory is used in lining of furnace and that electrode is used. The electrode is inserted into furnace charge to for submerged arc operation. It is a kind of industrial electric furnace making use of the arc energy and energy producing by current through the furnace charge. It has the function of continuous feeding charge, intermittent slagging and continuous operation.
Features:
Short net of ferro-alloy submerged arc furnace is arranged as inverted triangle. Calcium carbide furnace is arranged as erected triangle. The reasonable design shortens distances of short net, reduces the length gap of three-phase copper tile, and reaches the highest power factor. Copper pipe is used thin-wall copper pipe and the arrangement is adopt double wire system. 180 degrees of compensation makes magnetic field counteracted. Water cooling can keep short net operating at low temperature, reduce troubles and improve the operation efficiency of system. The choice of main technical parameters of furnace body and electrical parameters is reasonable and practical. Electrode system adopts international advanced demag technology, South Africa PYROMET technology, etc. For example, hanging cylinder type electrode lifting device is adopted, which has reliable performance and can adjust up and down position of electrode.
Types of submerged arc furnace:
Silicomanganese furnace, high carbon ferromanganese furnace, medium and low carbon ferromanganese furnace, ferrosilicon furnace, ferronickel furnace, ferrochromium furnace, high carbon ferrochromium furnace, medium carbon ferrochromium furnace, micro-carbon ferrochromium furnace, silicon chromium alloy furnace, industrial silicon furnace, calcium carbide furnace, silicocalcium furnace, silicon aluminum alloy furnace, etc.
Constitution:
Furnace shell, smoke extraction system, short net, control system, tapping system, charging system, discharging system, water cooling system, hydraulic system, air-operated system, batching station, high voltage electrical system, low voltage electrical system, automation system and upper computer control system.
SHOO-IN (ITL) Holding Xi'an Equipment Co., Ltd is specialized in producing electric arc furnace, refining furnace, VD, VOD vacuum casting and kinds of ferro-alloy submerged arc furnace and medium frequency furnace as well as spare parts and metallurgical equipment. It is an international metallurgical equipment engineering company, which is shared by Hong Kong international super large enterprise group SHOO-IN (ITL) holding Xi'an equipment Co., Ltd and hold by Fujian new investment management Co., Ltd. Senior management, key technical staff, line manager, installation and debugging personnel in SHOO-IN also share. The registration place is Xi'an China.
With the development of more than ten years, SHOO-IN has been a large comprehensive engineering company. The main business is domestic first-class metallurgical equipment design, production, complete design and project general contracting. There are over 100 staff which include 50 workers and 40 people for designing and administration. We also have lots of expert of high reputation as counselor group to supply solution on innovative and high technology, management, quality controlling etc. The engineering project contracting is all over the country related with more than 100 large and medium-sized enterprises in more than 10 provinces, municipalities and autonomous regions. At the same time, our company supplies steel mill in many countries and regions with equipment, technical cooperation, technical exchange and joint design. What's more, environmental protection and energy-saving vertical charging scrap preheating arc furnace independently developed by our company has reached the international lowest power consumption. Power consumption of scrap steel smelting is close to 300 KWH per ton, and reduce the cost $12.3 for per ton steel. Take an example of annual output 200000 tons of steel factory, power consumption and energy saving aspects increase profits $2.5 million. The electrode adjustment system is adopted Siemens technology. The electric furnace and the vertical feeding system are developed by our company independently. And we applied for a patent.
Our company applied for dozens of patents over the years. We often have technical exchanges with Japan, America, Germany and other countries. We also exchange and cooperate with China Iron & Steel Research Institute and academic institutions such as University of Science and Technology Beijing, Northeastern University, Xi'an University of Architecture and Technology, Xi'an University of Technology, etc. Thus, our company made a breakthrough in multiple key technology of metallurgical equipment. Now, we are applying for national energy conservation and scientific research funds. The concept of our company is "Establishing the industry credibility; Win the customers trust. " Our company sincerely provides first-class and advanced equipment for domestic and abroad customers. We would like to make efforts in energy conservation and improving company profitability to reach the international leading level.
At present, leading products and scope of business supplied by our company for customers at home and abroad are as follow:
1.15-350t three-arm ladle refining furnace
2. National level key new product 15-100t three-phase single arm ladle refining furnace
3. Domestic advanced 20-150t high impedance and ultrahigh power electric arc furnace
4. Eco-friendly and energy-saving vertical charging scrap preheating arc furnace
5. Eco-friendly and energy-saving horizontal charging scrap preheating furnace
6.15-350 t VD, VOD, AOD vacuum refining furnace equipment, process system and VC vacuum pouring equipment
7. Electrode adjustment system of electric arc furnace and refining furnace (Siemens technology)
8. National level key new product 5-300t DW series EAF short net
We sincerely welcome domestic and abroad customers to contact and visit our company!
