Product Specifications
| Prod Model: |
CTG series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Condition: |
New |
| Warranty Time: |
12 Month |
| Certificate: |
ISO CE |
| Installation: |
Provide Guidance |
| Type: |
Magnetic Separator |
| Voltage: |
380V |
| Weight: |
1T |
| Certification: |
ISO9001:2008 |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Non-Customized |
| Condition: |
New |
Product Description

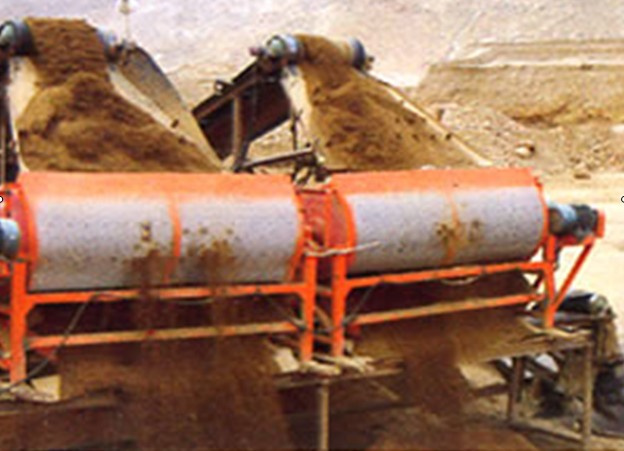

Introduction of dry magnetic separator
CTG series dry magnetic separator is a new type of dry separation equipment, which is specially designed for low grade iron ore. It mainly works for soft ore, such as weathered sand, ant sand, volcanic rocks, etc. It features wide particle size range (0-12mm), high recovery rate, strong magnetic field intensity, homogenerous distribution, large magnetic penetration depth, big adhesion strength, long service life span, etc
.
Application of drum magnetic separator
The dry Magnetic Separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The magnetic drum separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. China Magnetic Separator is available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc.
Features
1)Short magnetic circuit,
2) little magnetic flux leakage
3) high magnetic intensity
4)low energy consumption
5) fine beneficiating results
6)simple structure and easy to maintain.
| Model | Cylinder Size
(mm) | Magnetic Strength(Gs) | Speed(m/s) | Power(kw) | Capacity | Weight(kg) | Note |
| t/d | m3/d |
| CTG-7522 | Φ750×2200 | 2000-3500 | 40 | 3 | 2500 | 1800 | 1300 | Permanent magnetism |
| CTG-7526 | Φ750×2600 | 2000-3500 | 35 | 4 | 3000 | 2200 | 1500 |
| CTG-9022 | Φ900×2200 | 2000-3500 | 38 | 5.5 | 3000 | 2200 | 1600 |
| CTG-9026 | Φ900×2600 | 2000-3500 | 28 | 5.5 | 3500 | 2500 | 1900 |
| CTG-1024 | Φ1050×2400 | 2000-3500 | 28 | 7.5 | 3500 | 2500 | 2200 |
| CTG-1030 | Φ1050×3000 | 2000-3500 | 22 | 11 | 4000 | 2800 | 2600 |
| CTG-1230 | Φ1200×3000 | 2000-3500 | 22 | 11 | 4200 | 3000 | 3000 |
| CTG-1240 | Φ1200×4000 | 2000-3500 | 22 | 15 | 5000 | 3500 | 3800 |
Gongyi Hengchang Metallurgical Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, Briquette equipments, coal preparation equipments, ball press equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer, gas industry etc.
In the last two decades, we always persist on the philosophy of "scientific and technological innovation, quality first, users first", and cooperated with a number of research institutes to form collaborative units, like Anshan Iron and Steel Research Institute, Nanning of Guangxi Nonferrous Metals Design and Research Institute, Henan Polytechnic University, invite and employ many senior engineers specialized in different fields to the factory for technical designing and supporting.
Science and technology as guide, constantly develop new products, improve product quality and perfect after-sales service, our plant successfully applied ISO9001: 2008 quality certificate and manage to design 10 to 5, 000 t/d mineral beneficiation equipment series production lines, 5 to 500, 000 t/d industrial briquette production line, our floatation machine is successfully applied to Zhong Ping Energy Chemical Group; Ball press series machine can briquette minerals powder, coal powder, plaster powder and other materials into a balls/ briquettes, which can be directly applied to the applications and smelting.
Our plant have been awarded "Enterprise of Observing Contracts and Keeping Promise enterprise" prize by Zhengzhou industrial and commercial bureau in consecutive years, "good faith private enterprise" prize by both Henan Province and Zhengzhou City, top 30 of key enterprises of the Gongyi government and bureau, products are welcomed by more than 20 provinces, municipalities and autonomous regions in China, and exported to South America, South Asia, Africa and other regions, products quality, technical supporting and after sale service are highly praised by users both home and abroad.
We welcome friends all over the world to visit our plant, persist on the mutual benefits and developments!
