ISO9001: 2008 Very Simple Structure Air Pneumatic Motor for Boat

Product Specifications

Prod Model:	DMY6QD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Pressure:	0.4-0.7MPa
No-Load Speed:	5900r/Min
Rated Speed:	3000-3240r/Min
Afer-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Producer:	Yantai Tashan Machinery
Direction:	Right and Left
Rated Power:	11.7kw
Air Consumption:	100-189L/S
Max Torque:	249n.M
Function:	Driving

Product Description

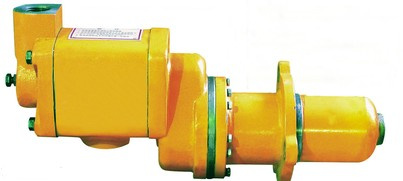

DMY6QD Air Motor
Introduction
DMY6QD air motor adopts compressed air as power to start the diesel engine.
This hoist features as follows
1, Big torgue in starting with load, fast to start and stop.
2, Stepless speed control, rated speed and power can be adjusted with air input.
3, Control valve can change air inlet direction, positive and negative turning can be realized shortly and quickly, with
Little impact. No need to load and unload.
4, Simple structure, small volume, light weight, easy operation and convenient to maintenance.
5, Have the function of over load protection, while over loaded, it will be automatically. Speed reduced until stop and
Run normally while load relieved.
6. Stable in damp, inflammable, explosive and rainy weather enviroment.
Widely used in the medium and small diesel.
Working Parameter

Working Pressure	Max power	Parameter at Max power
		Output Gear Speed	Output Gear Torque	Air Consumption
MPa	Kw	R/min	N·m	L/s
0.4	6	2050	28.5	7.4
0.5	8	2230	35.3	93.3
0.63	10.5	2350	42.5	113.8
0.8	15	2530	56.5	146.3
