Product Specifications
| Prod Model: |
4JA1/4JB1/4BD1/6BD1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
55kw/65kw |
| Running Speed: |
3600rpm |
| Bore*Stroke: |
93*102mm |
| Fuel: |
Gasoline Engine |
Product Description
| Line | Item | Engine Specifications and Description | | 1 | Model | 4JB1 | 4JB1T | | 2 | Type | ,,4 stroke, water cooling, inline, direct-injection | | 3 | Cylinders | 4 | | 4 | Bore | 93 mm | | 5 | Stroke | 102 mm | | 6 | Displacement | 2.771L | | 7 | Power / RPM | 55KW@3600RPM | 65KW@3600RPM | | 8 | Oil pump | /mechanical pump or electronic pump | | 9 | Fuel supply | 0# | 0# | | 10 | Min. fuel consumption |
| ≤ 235 g/kw.h |
| ≤ 224 g/kw.h | | 11 | Compression ratio | 18.2:1 | 18.2:1 | | 12 | Ignition system | Compression ignition | | 13 | Ignition order | 1-3-4-2 | | 14 | Kg | 235 | | 15 | PRICE |
| USD.00 |
|
1. Isuzu engine model: 4JB1, 4JB1T, 4BD1, 4BD1T, 4HF1, 4HE1T, 6BD1, 6BD1T, 6HF1
2. Deliveried with warranty
Isuzu engine model:
4JB1, 4BD1, 4HF1
6BD1, 6HF1

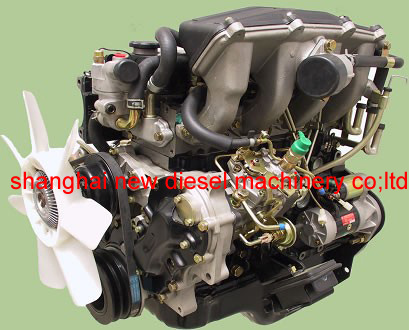

ISUZU DIESEL ENGINE
4JB1 4 93/102 2.77 57/3600 172/2200 833x580x700 124
ISUZUDIESEL ENGINE
4JB1T 4 93/102 2.77 68/3600 202/2200 833x580x700 130
ISUZU DIESEL ENGINE
4BD1 4 102/118 3.85 70.6/3200 245/2200 921x651x751 330
ISUZU DIESEL ENGINE
4BD1T 4 102/118 3.86 83/2800 324/1800 790x660x820 340
ISUZU DIESEL ENGINE
6BD1 6 102/118 5.78 103/3000 372/2000 1286x660x870 480
ISUZU DIESEL ENGINE
6BD1T 6 102/118 5.78 120/2800 460/1800 1286x700x970 555
ISUZU DIESEL ENGINE
4HF1 4 112/110 4.334 110/2600 460/1500 1121.5*615.5*743.5 350
ISUZU DIESEL ENGINE
4HE1T 4 110/125 4.751 125/2300 580/1500 1181*699.8*833.3 365
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
