Product Specifications
| Prod Model: |
JDF5060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Garbage Truck |
| Fuel: |
Diesel |
Product Description

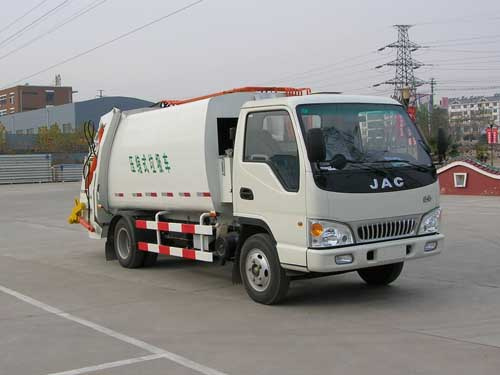

JAC compression type garbage truck
------ Engine
Model: YC4F115-30 CY4102-C3D YZ4DA3-30 HFC4DA1-2B2
Power (kw): 85 80 81 88
Displacement (ml): 2660 3856 3660 2771
------ Chassis
Outline dimensions (mm): 5793/ 1820/ 2160
The carriage dimensions(mm):
Wheelbase (mm): 3308
Tire: 6.50-16, 7.00-16
Electro (V): 24
------ Special Function
The box length (mm): 3420
The box width (mm): 1760
The box height (mm): 1160
Rated lift weight (kg): 150
JAC COMPRESSION TYPE GARBAGE TRUCK refitted from JAC chassis, The vehicle is artistic, the clean environmental protection, trash compartment volume is big, is the municipal administration environmental sanitation department, the large-scale industry and mining enterprise carries on the ideal which trash cleans up and takes away to use the vehicle.
Our company Production street sprinkler. Tank truck. Garbage truck. Sewage Dredging Truck. High pressure washer truck. Chemical liquid truck. Powder material truck (bulk cement truck ). Crane with automobile. Hydraulic aerial cage. Street wrecker. Fire truck. Refrigerated van. Kept temperature van. Van truck. Sweep street truck. Concrete mix truck. Electric mobile machinery automobile. Dump truck. Semi-trailer truck and so on.
Hubei jiangnan dongfeng special automobile Co., Ltd., is located in suizhou, a city famous as the hometown of Chinese ancestor emperor yan and famous for special automobile industry. The company, listed in national designated refitting manufacturer, is a refitting base of dfac and sales branch of faw. We have seven producing workshops and all of our products are catalogued in nation notice and comply with the new regulations to meet the new standards.
Main products are oil tank truck, water tank truck, fecal sucking truck, fire fighting truck, garbage truck, truck with loading crane, bulk cement/ powder transport truck, van type truck, dump truck, semi trailer, etc. We try to meet the requirements of domestic and oversea customers with products of novel design and reliable quality. We will also follow the purpose of "quality first, honesty first, and service first", to repay the society with reliable products and warm service.
