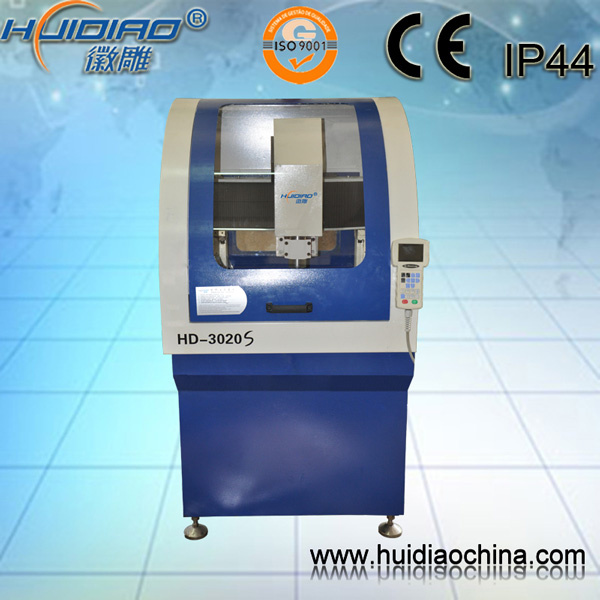

Product Specifications
| Prod Model: |
HD-3020S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Usage: |
Stone |
| Model: |
HD-3020s |
| Type: |
Jade Engraving |
| Table Size: |
400*260mm |
| Working Size: |
300*200*55mm |
| Maximum Speed: |
6000mm/Min |
| Spindle Power: |
800W/1500W/2200W (Optional) |
Product Description
Applicable Scope
Widely used in jade, bowlder, jewelry and mould processing; Can be finished sculpture, words, art form, embossed characters in one time.
Features
Adopt DSP CNC system, keyboard operation, large screen display, easier to operate and maintain, more humanized design.
Adopt unique intelligent prediction algorithm, motor potential capability run fully, high-speed engrave curve and straight line, idling up to 25m/m.
Unique system dynamic update capability, according to different processing requirements, select suitable system, thus effectively improve processing efficiency. (Please start the operation followed the instructions of the technical staff of the factory or agent. )
32M memory capacity, optional reading and processing.
Connect the computer via USB, transmit data complete immediately, Support hot swap in win98/NT/2000/XP system, plug and play.
Stronger compatibility, support several CAM/CAD software, such as Type3/Artcam/Castmate/Proe/UG/Artcut etc...
For power outage or machine fault caused shutdown, when the machine working normally, it can continue to engrave from the breakpoint.
Dual gapless screw pole, import guide ways
The spindle with high power and frequency conversion
Accept customized
|
Function Index |
HD-3020S |
|
Table size |
400*260mm |
|
working size |
300*200*55mm |
|
Maximum speed |
6000mm/min |
|
Spindle power |
800W/1500W/2200W (optional) |
Rotational Speed of Spindle |
24000rpm |
|
Manner of Receiving Data |
USB |
|
Memory |
32M |
|
Command language |
G code/HPGL |
|
Cutter bits size |
Φ 3.175 , Φ 4, Φ 6 |
|
Power Supply |
AC 220V/50HZ |
|
Driving system |
stepper/servo |
|
weight |
95KG |
Shenzhen Huidiao CNC router Co., Ltd. Has been specialized in the R&D and manufacture of woodworking equipment, advertising equipment and all kinds of industrial CNC equipment, since the inception.
Our company specializes in cutting plotter, advertising engraving machine, woodworking cutting machine, woodworking relief engraving machine, cylinder engraving machine, laser machine, plasma cutting machine, Vacuum adsorption cutting machine and mold machine. Our products are widely used in the process and production of advertising, woodworking, furniture, wood decoration, door industry, handicrafts, lighting, stone, organic products, copper, aluminum and other industries. Our products have been exported to dozens of countries in Europe, America, the Middle East, and Southeast Asia. We are willing to work with you hand in hand.
