Henan Yuhong Heavy Machinery Co., Ltd. >> Jaw Crusher for The Stone Crushing Plant

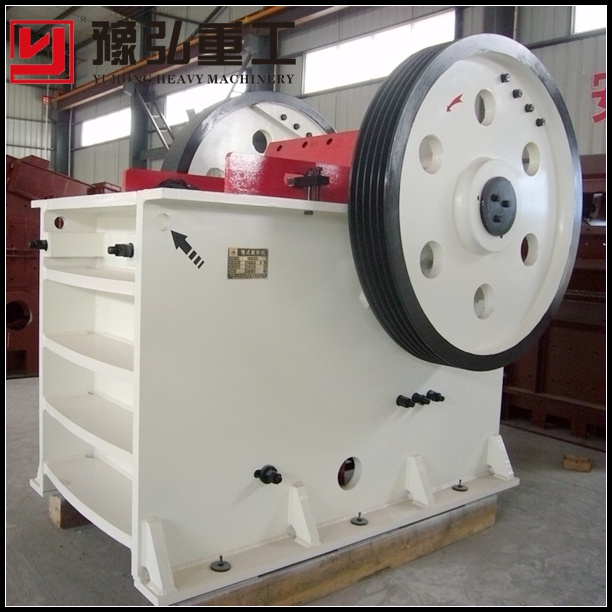

Jaw Crusher for The Stone Crushing Plant

Name: Jaw Crusher for The Stone Crushing Plant
Brand: china-manufacturer-directory.com
SKU: 684852912
Availability: InStock
Rating: 4.8 (66 reviews)

Supplier:	Henan Yuhong Heavy Machinery Co., Ltd.
Price:	US $ 10000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PEF/PEX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE, ISO9001
Material:	Greateat Steel in China
Warranty:	One Year(Wearing Parts Excluded)
After-Sale Service:	Installation, Commissioning
Wearing Parts Supply:	The Whole Life
Uses:	Stone,Ore,Mining,Quarry
Capacity:	5-1000tph
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Spare Parts Supply:	Any Time Supply
The Machines Classification:	Stone Jaw Crusher
Drive:	Electric
Compressive Strength (',For Crushing):	>300MPA
Application:	Stone Industry
Crushing Style:	Extruding & Milling
Crushing Degree:	Coarse Crusher
Type:	Jaw Crusher

Product Description

Jaw Crusher

Application of jaw crusher:

PE series jaw crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble, etc. compression strength does not exceed 320Pa. Jaw crusher machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.

Jaw crusher Features:

1) Firm structure, stable performance, large capacity, even producing granularity.

2) With the increase of production, our jaw crusher can greatly reduce the operating costs.

3) Convenient maintenance and economical running expense..

4) The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity.

jaw crusher Model	Max feed size(mm)	Performance		Main shaft rotary speed(r/min)	Motor power(kw)	jaw crusher overall size ( L×w×h ) (mm)	Weight(kg)
jaw crusher Model	Max feed size(mm)	Adjusting range(mm)	Capacity(m3/h)	Main shaft rotary speed(r/min)	Motor power(kw)	jaw crusher overall size ( L×w×h ) (mm)	Weight(kg)
PE150×250	125	10-40	1-3	285	5.5-7.5	922×745×933	700
PE200×300	165	20-70	2-8	265	11	1056×1100×1120	800
PE250×400	210	20-80	5-20	310	15-18.5	1108×1140×1392	3000
PE400×600	340	40-90	10-40	275	30	1700×1732×1392	7200
PE350×750	290	30-55	20-50	300	37	1900×1806×1808	8900
PE500×750	425	50-100	34-68	275	55	2050×1860×2145	11320
PE600×900	480	75-200	40-120	255	75	2792×2168×2250	17600
PE750×1060	630	80-200	80-160	250	90	4180×2560×3070	30530
PE900×1200	750	100-200	110-200	250	110	5200×2900×3500	50000
PE1000×1200	850	195-265	315-500	200	110	3480×2876×3330	55000
PE1200×1500	1020	150-300	400-800	180	160	4200×3300×3500	100000
PEX150×750	125	10-40	5-15	300	15	1220×1480×1180	3600
PEX250×1000	210	15-55	10-32	300	37	1580×1992×1380	7350
PEX250×1200	210	15-60	12-38	300	37	1730×2192×1380	8700
PEX300×1300	250	20-90	16-65	300	55	1930×2400×1747	11600

Henan Yuhong heavy machinery Co., Ltd is a large-scale enterprise with an integration of research &development, manufacturing and sales. Main products are: Crushing series, industrial grinding, ore dressing equipments and cement equipments.

The company is located in Zhengzhou national high-tech development zone, founded in 1997, covers an area of 16.7 hectares. Annual sales volume reaches 30million. In 2003 the company passed ISO9001 international quality certification.

The company is Zhengzhou National Torch Plan and keeps intimate relationship with a number of domestic research institutes such as Zhengzhou University, Zhengzhou Mineral Research Institute, etc. Meanwhile we actively take in a large number of high-tech talents in management and scientific research, thus developing our research strength into domestic leading level.

The company has a modern office environment, purchased a great amount of whole site production equipments, checking equipments and professional examination equipments. The whole process adopts 5S management mode and will never allow a single team who has been adhering to the principle of "making customers believe". We adopts flexible service mode so that our customers can receive omnibearing and best-quality service.

Over the last 15 years, the company adhere to the spirit of "forging ahead in unity; Seeking truth and innovation". We work hard to achieve rapid development and expand our company into China's star enterprise in manufacturing industry. Now all Yuhong people are working hard with great unity, passion and confidence for achieving sales volume of 10 billion in 5 years and building Yuhong a renowned company with a 100 history!

All Yuhong people sincerely welcome talents of the world to come and visit our factory!
