Product Specifications
| Prod Model: |
JB-300B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Impact Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC380V |
| Maxcapacity: |
300j |
Product Description

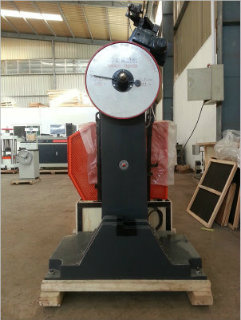

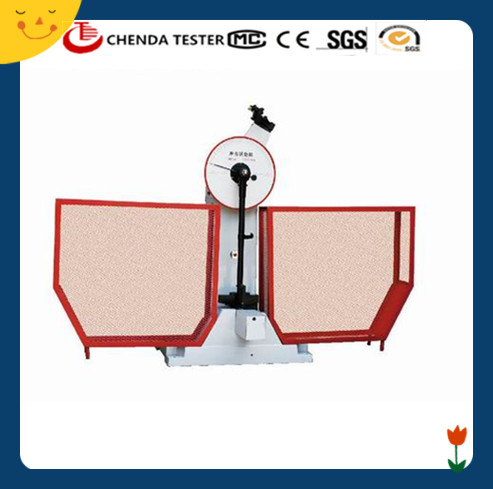

JB-300B Charpy pendulum impact test machine for metal
Main Functions:
It mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load. This machine can be operated semi-automatically. The pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Technical specifications:
| Specification | JB-300 |
| Impact energy | 300J 150J |
| Impact velocity | 5.2m/s |
| Raising angle | 150° |
| Standard span | 40mm |
| Round angle radius of grips | R1-1.5mm |
| Round angle radius of striking | R2-2.5mm |
| Power supply | 3 phase, 380v,50HZ,180W |
| Dimension(mm) | 2124*600*1340 |
| Net weight | 450kg |
| Size of specimen | 10mm*10mm*55mm(U,V2mm Notches) |
Working shop:
Jinan Chenda Testing Machine Manufacturing Co., Ltd., was established in 2003, it is a professional comprehensive company which contains research and development, production, marketing and service in one set. The products apply widely on such fields as scientific institutions, colleges, metallurgical, construction materials, railway trains, highway traffic, rubber plastic, wire and cable and fire facilities.
Our company located in the beautiful spring city-Jinan which is the center for developing testing machine in China as well as the largest testing machine producing base. We are specialized in hydraulic universal testing machine which includes computer controlled servo hydraulic universal testing machine, computer display hydraulic universal testing machine, digital display hydraulic universal testing machine. Electronic universal testing machine which includes computer controlled electronic universal testing machine, electronic tensile testing machine, spring testing machine, panel testing machine, fire door testing machine, insulation material testing machine, Ring rigidity testing machine, electronic power testing machine, pellet testing machine, film testing machine, and so on...Friction and wear testing machine which includes: Computer screen display four-ball friction testing machine, computer display vertical universal friction and wear testing machine, screen display type friction and wear testing machine. Complete impact testing equipment and bending testing machine.
Our company regards satisfying clients' Demands as the motive for development, regards technical innovation as means of advancing, regards quality guarantee as essence of surviving and regards employees' Satisfaction as base for existence. We also shoulder the responsibility to provide our clients with first-class equipments for checking materials.
