Product Specifications
| Prod Model: |
JBK3-630VA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Primary Voltage: |
220V or 380V or Customized |
| Secondary Voltage: |
12V,24V,110V or Customized |
| Outline Size: |
152*110*150mm |
| Safety Standard: |
En61558 |
| Power: |
160va |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Reelen |
Product Description

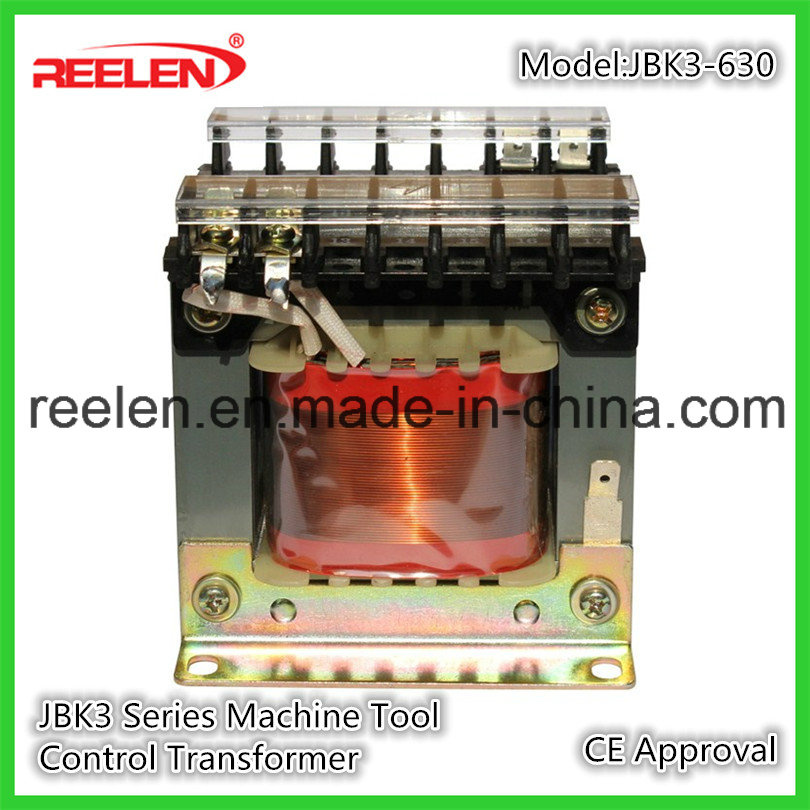

JBK3 Machine Tool Control Transformer
1) Application:
JBK3 series machine tool control transformer is a kind of new product by reference to sample of SIMENS Company,it accords with standards like VDE0550,IEC204-1,IEC439,GB5226,etc.It is suitable for AC circuit of 50~60Hz,output rated voltage less than 220V,input rated voltage less than 500V,worked as control power supply for machanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.
2) Overall dimension and installation dimension:
| Model | Rated capacity
(VA) | Primary voltage
(V) | Secondary voltage
(V) | Outline size
(mm) | Hole distance for installation
(mm) | Installation hole
(mm) |
| Bmax | Dmax | Emax | A | C | K | J |
| JBK3-40 | 40 | 220,380 or be customized | 6.3,12,24,36,110,127,220,380 or be customized | 82 | 78 | 92 | 56 | 52 | 5 | 9 |
| JBK3-63 | 63 | 82 | 78 | 92 | 56 | 52 | 5 | 9 |
| JBK3-100 | 100 | 86 | 92 | 95 | 64 | 69.5 | 5 | 9 |
| JBK3-160 | 160 | 98 | 97 | 105 | 84 | 71.5 | 6 | 11 |
| JBK3-250 | 250 | 98 | 110 | 105 | 84 | 85 | 6 | 11 |
| JBK3-300 | 300 | 122 | 109 | 125 | 90 | 88 | 6 | 11 |
| JBK3-400 | 400 | 122 | 113 | 125 | 90 | 92 | 6 | 11 |
| JBK3-500 | 500 | 122 | 126 | 125 | 90 | 105 | 6 | 11 |
| JBK3-630 | 630 | 152 | 110 | 150 | 130 | 90 | 8 | 14 |
| JBK3-800 | 800 | 152 | 125 | 150 | 130 | 105 | 8 | 14 |
| JBK3-1000 | 1000 | 230 | 170 | 156 | 160 | 142 | 7 | 14 |
| JBK3-1600 | 1600 | 258 | 185 | 168 | 180 | 155 | 7 | 14 |
| JBK3-2500 | 2500 | 285 | 210 | 175 | 210 | 175 | 7 | 14 |
3) ATTENTION:
1.The payment term:We accept TT,30% deposite and 70% balance against copy of BL.
2.The delivery time:Usually it will take about 15-20 days.
3.The standard of package:For the small capacity,it will be in carton,for big capacity,we should use strong wooden case for protection.
4.The material of transformer:We have two types,one 100% copper and another one is copper with aluminum.It depends on your requirement.In fact,those two have difference if normal work well.Only except the longlife.Copper is better and also higher price.
5.The logo:If you have good quantity,it absolute no problem to do OEM.
6.The month capacity:reach near 80000pcs/month(for relay type small capacity) or near 7000pcs/month(for big capacity).
7.Our market:our products are popular in Indonesia,Philippines,Sri Lanka,Pakistan and so on.Some of them are our regular customers and some of them are developing.We hope you can join us and make mutural benifit from our cooperation.
8.Warranty: in 13 monthes since BL date.
