Product Specifications
| Prod Model: |
JCZ5-12KV/250A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Miniature |
| Theory: |
Voltage Relay |
| Protective Characteristics: |
Open Relay |
| Load: |
High Power Relay |
| Action Principle: |
Electronic Type |
| Usage: |
Power |
Product Description

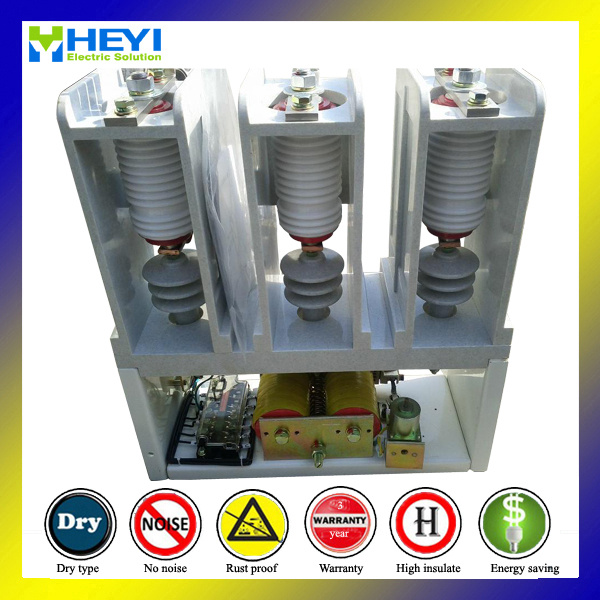

JCZ5-12KV/250A 220v coil ac vacuum contactor high voltage 3 phase contactor
advantages:
1 small size, light weight, long life, low price
2 high operating frequency, good performance
3 no explosion, no pollution, no electric arc spray
4 breaking good, strong Interest Arc ability
5 long maintenance cycle, easy maintenance
specifications:
| NO. | Parameters | Unit | Value |
| JCZ5-7.2J/D-630/400/250 | JCZ5-12J/D-630/400/250 |
| 1 | Rated Voltage | kV | 7.2 | 12 |
| 2 | Rated Current | A | 630 | 400 | 250 | 630 | 400 | 250 |
| 3 | Rated closing current (rms) | A | 6300 | 4000 | 2500 | 6300 | 4000 | 2500 |
| 4 | rated breaking current | 5040 | 3200 | 2500 | 5040 | 3200 | 2500 |
| 5 | 4S thermal current | 6300 | 4000 | 2500 | 6300 | 4000 | 2500 |
| 6 | Limit breaking current | 6300 | 4000 | 2500 | 6300 | 4000 | 2500 |
| 7 | Power frequency withstand voltage | kV | 32 | 42 |
| 8 | operating frequency | Times/h | 300 |
| 9 | Electric life time | AC-3 | ×104 Times | 25 |
| AC-4 | 10 |
| 10 | Mechanical life | 30 |
| 11 | Rated operating voltage | V | AC110/220 |
| 12 | Closing coil pull current | A | ≤ DC6/3 |
| 13 | Holding coil holding current | D:DC0.32/0.16 |
| 14 | Shunt trip coil current | J:DC2.5/1.3 |
| NO. | Parameters | Unit | Value |
| JCZ5-7.2J/D-630/400/250 | JCZ5-12J/D-630/400/250 |
| 1 | contact distance | mm | 4.5+1.0/-0.5 | 6+1.0-0.5 |
| 2 | contact overtravel | 1.5±0.5 |
| 3 | Average closing speed | m/s | 0.1~0.25 |
| 4 | Average opening speed | 0.3~0.6 |
| 5 | 3 Phase closing - opening period | ms | ≤ 2 |
| 6 | Closing time / opening time | ≤ 150/ ≤ 150 |
| 7 | Each phase conductive loop resistance(20oC) | Ω | ≤ 250 |
working conditions:
1 Altitude above sea should not be over 2,000m
2 Ambient temperature is -25~+40°C
3 daily average not more than 95%, average per a month not exceed 90%,steam air pressure not more than 2.2KPA,average per a month not more than 1.8KPA
4 Pollution degree: class III
5 no frequently movement
6 the ambient atmosphere shall avoid the pollution from corrosive or flammable gas,steam
7 during contactor in service,the sloping angle between mounting surface to horizontal surface not more than 5°C
