Supplier: | GuangZhou JieBao Electronics Technology Development Co., Ltd. |
---|---|
Price: | Negotiable/Piece |
Min Order: | 10/Piece |
Quantity:: | |
Trade Terms: | FOB,EXW |
![]() |
Prod Model: | HT368 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Type: | Handheld Computer |
Style: | Windows CE Handheld Computer |
Weight: | <400g |
Size: | 195mm×78mm×43mm |
Communication: | WiFi/3G/GPRS/WCDMA/RFID/Bluetooth/IR/GPS |
Screen: | 3.5inch Touch Screen |
Battery: | 4000mAh |
Keyboard: | 28 Keys Letters-Digit Shift Backlit Keyboard |
Flash: | 2GB |
Screen Type: | Capacitive Screen |
Memory: | 256MB |
Network Mode: | 3G |
CPU Core: | Single-Core |
Webcam: | Webcam |
Battery Capacity: | 4000mAh-5000mAh |
Built-in Bluetooth: | Built-in Bluetooth |
Built-in Microphone: | Built-in Microphone |
Card Reader: | Card Reader |
Rear Camera Pixel: | 2MP-3MP |
Fingerprint: | Without Fingerprint |
Screen Size: | 3.5inch |
Operating System: | Windwos CE |
Hard Disk Capacity: | 2g + 32g TF Card |
CPU Type: | 800MHz Telechips Arm11-Tcc8902 |
Front Camera Pixel: | N/a |
With Free SDK! it's extremely easy to develop any practical softwares you need.
Your Best Choice of Handheld Computer, Direct Deal from Factory.

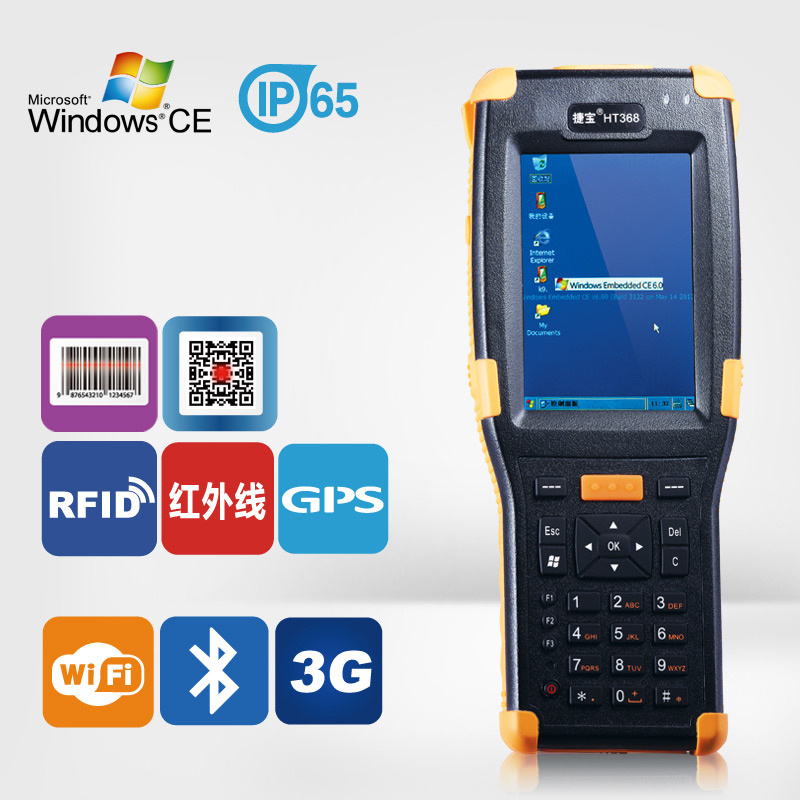

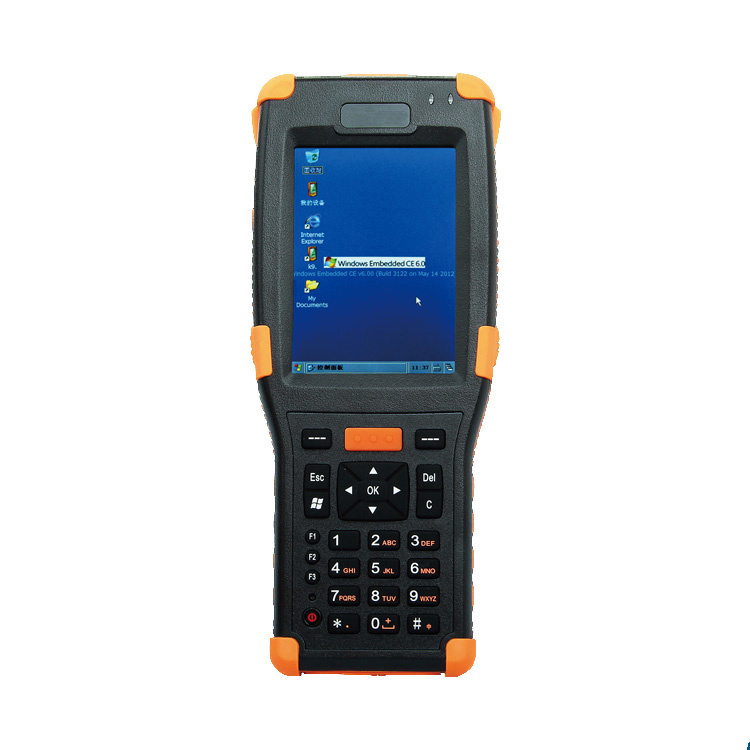

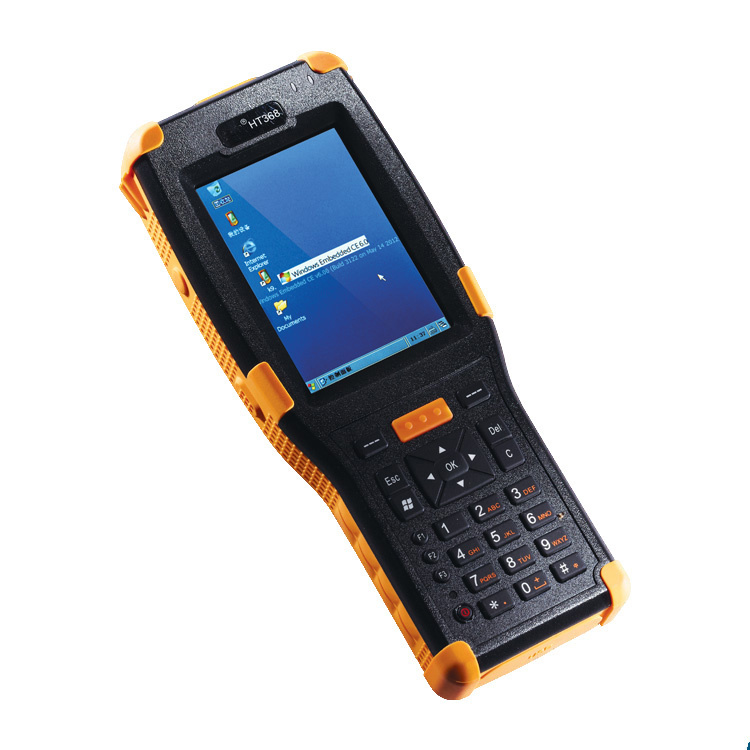

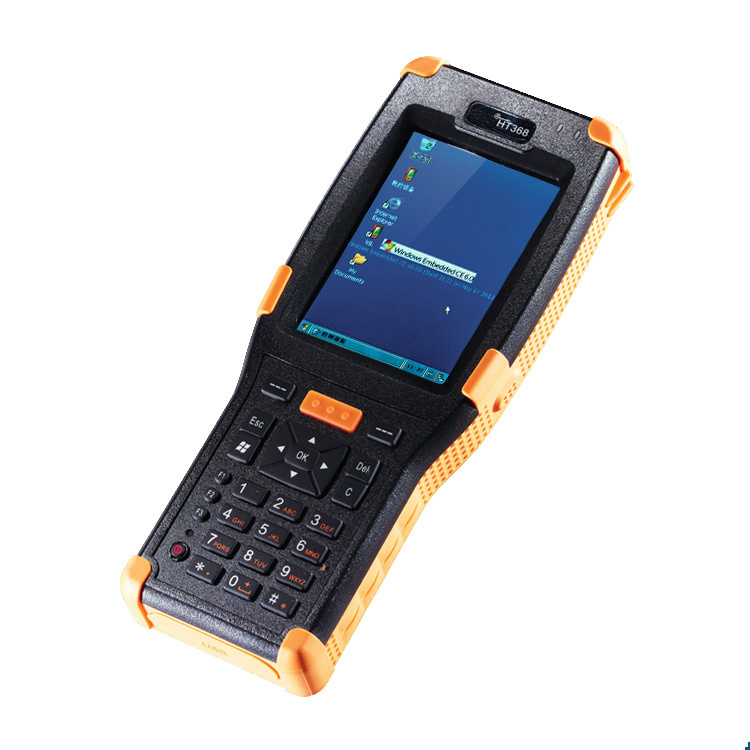

HT368 is a Handheld Computer qualified with full performance. Based on ARM11 and Windows CE6.0, its high-performance integrates computer technology, image technology, wireless communication technology, barcode scanning, RFID, GPS and etc.
OS : Windows CE 6.0
Industrial Protection : IP65
Screen : 3.5 inch
Communication : 3G/WiFi/Bluetooth/RFID/Infrared/GPS
Handheld Computer Specification | |
Processing Platform | |
Processor | 800MHz Telechips ARM11-TCC8902 |
Operating System | Microsoft Windows CE6.0 |
Memory | 2GB NAND Flash |
System Environment | |
SDK | Microsoft Windows CE SDK |
Programming | Support C++/C#.NET/VB.NET / Visual Studio 2005/2008 or higher edition |
Data acquisition | |
1D Barcode Scanning* | Code 39; Codabar; Code 128; Discrete 2 of 5; Interleaved 2 of 5; |
RFID* | Support 13.56MHz(ISO14443A) ,125K (EM4100) |
Infrared Communication* | Read infrared smart meter data, applying to power meter reading system |
GPS* | positional accuracy less than 10m, rate accuracy less than 0.01m/s |
Wireless Communication | |
WiFi* | IEEE 802.1b/g |
Communication Module* | 2G / GPRS |
3G / CDMA2000 / WCDMA | |
Bluetooth* | Bluetooth V2.0(safety certificate, data encryption) |
Power Management | |
Power supply | 3.7V 4000mAh Polymer batteries (Working time over 8hrs) |
Physical Property | |
Camera* | 2 megapixels with flashlight |
Display | 3.5 inch color tangible TFT-LCD screen QVGA(240×320) |
Keyboard | 26 keys letters-digit shift backlit keyboard |
Voice frequency | 0.5Wspeaker |
Measurement | 195mm×78mm×43mm |
Weight | <450g including standard battery package |
Expansion Slot | Support 1 SIM card, 2 PSAM card and 1 Micro SD(TF) card |
Operating Environment | |
Operating Temperature | -20°C to +50°C |
Storage Temperature | -25°C to +70°C |
Humidity | 5%RH-95%RH(no condensation) |
Protection Grade | Conform to IP65 sealing standard |
Shock Resistance | Within operating temperature, 6 surfaces are able to withstand drop from 1.5m height |
Rolling Test | In the diameter range of 0.5m, the 6 surfaces undergo rolling test for 1000 times. |
Anti-static | ±8kVcontact discharge;±15kVair discharge |
Extended Interface | USB2.0; IO extended port(RS-232,RS-485 serial ports); infrared communication, Optical communication |
Scanning Parameter | |
Standard Parts | USB Cable X1 , Handwriting Pen X1, Rope X2, Charger X1, Communication Cable X1, Software Disc X1 |
Warranty | 12 months (Accessories are exclusive) |
Product Certificates | CCC standard certificate /EIP contamination control mark /GPRS and EVDO Network Access License of Telecommunication Equipment |
PS. *mark stands for optional funtion |
