Product Specifications
| Prod Model: |
Jgw-1103c04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Compression Format: |
H.264 |
| Image Sensor: |
30W Pixels CMOS |
| Video Resolution: |
VGA:640*480 |
| Video Storage: |
USB, Micro SD |
| WiFi: |
Yes, 802.11 B/G/N |
| Power Supply: |
DC 12V 2A |
| Operating System: |
Embedded Linux OS |
| Video Output: |
Bt656/3.5 Inch TFT LCD |
| Dimensions (Mm): |
150*95*160mm |
| Weight: |
500g |
| Receive Frequency: |
433.92MHz |
| Alarm Volume (',within 1m): |
≥110dB |
| Transmission Mode: |
Wireless |
| Certification: |
CCC |
| Type: |
Home Alarm |
| Application: |
Indoor |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Sensor Type: |
Video Motion Alarm |
| Working Principle: |
Electro-Optical Type |
| Usage: |
Auto |
Product Description

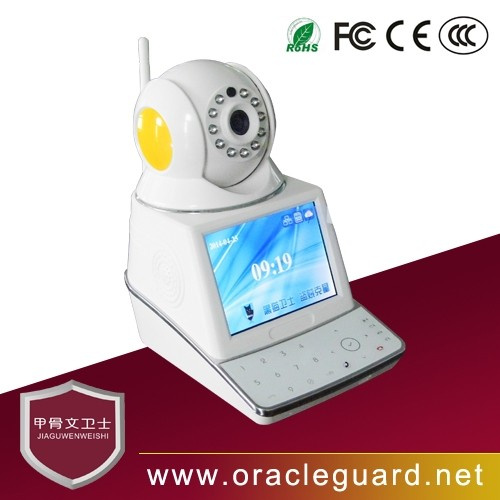

Jgw-1103c04 Nvas 640P wirelessP2p Smart WiFi security alarm
Functions & Features:
1: Free video calls: It can realize the video call not only between two cameras, but also among smart phone, tablet PC and camera. No need to pay any other communication charge.
2: P2P(Plug&Play): No need DDNS, No need Port Forwarding. Plug and Play.
3: Simple to setup: No need PC, All setup via the camera, friendly Gui.
4: Mobile Terminal Device: Supports Android, iOS Mobile Terminal(Phone, Tablet PC).
5: Display: Comes with 3.5 inch HD display, Support live video or Playback local video.
6: Two way audio: Built-in microphone and speakers. Compression: G. 711A, High quality audio.
8: High image&video quality: Video compression H. 264, CMOS 0.3 Megapixel.
9: Pan/Tilt: Supports remote Pan/Tilt control(Pan: 355 & Tilt: 90 )
10: Night Vision: Auto IR-LED illumination for night vision (up to 10 metres)
11: Local Storage: Support SD and U Disk video recording. (up to 64GB)
12: Alarm: Supports Motion detection, Phone push alarm, Email alarm. Whistle alarm.
13: Wireless: Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
Installation:
How to download a app, how to handle it?
1. First: Pls enter ur IOS or Android store search "NVAS", down load it.
2. Then: Registered it with ur phone No. Or Mail add.
3. Add our test model as contactor, No. "12594" password: "123"
4. Send a remote monitoring video or remote experience the function.
How to code alarm accessories with this model?
1. Pls install the alarm system as the user manual.
2. Find code function on ur app. Choose one defence zone.
3. Trigger the wireless alarm sensor at the same time.
4. After a sound "D~" the sensor had been code with the alarm host.
Standard package:
Alarm host*1pcs
Remote control*1pcs
Door control sensor*1pcs
3C card*1pcs
Why choose us?
1. Professional manufacturer in producing alarm systems & video surveillance, ect. For 15 years.
2. Factory direct sales with competitive price but high quality
3. All the other accessories can be added optionally
4. Pass many certifications, e. G.: CE&FCC, etc.
5. Quick response
6. Small MOQ
7. Strong OEM/ODM ability
8.10 minutes to airport
|
Technical parameter |
|
System |
Main processor |
High Performance Embedded Microprocessor Hi3507 |
|
|
Operating system |
Embedded Linux OS |
|
Video |
Image sensor |
30W pixels CMOS |
|
|
Video Compression Format |
H.264 |
|
|
Signal System |
PAL/NTSC |
|
|
Video Resolution |
VGA:640*480 |
|
|
Recording Speed |
VGA@ 25 fps or 30 fps |
|
|
Motion Detection |
YES |
|
|
Minimum illumination |
0LUX/F1.2 |
|
|
Video call |
YES |
|
|
IR |
YES |
|
|
Video output |
BT656/3.5 inch TFT LCD |
|
Audio |
Compression |
G.711A |
|
|
Audio Input |
Built-in microphone or an external headset |
|
|
Audio Output |
Built-in speakers or an external headset |
|
Recording Manager |
Recording Mode |
Manual/Timer/Motion / Schedule |
|
|
Video Storage |
USB,Micro SD |
|
Alarm |
Alarm Input |
Learning wireless sensor alarm input |
|
|
Alarm triggered |
Speakers alarm,Alarm recording,Capture,Email |
|
Others |
Ethernet Interface |
RJ45 100M / 1000M Base-TX |
|
|
USB |
1* USB 2.0 |
|
|
TF |
1*TF |
|
|
Wifi |
YES,802.11 b/g/n |
|
|
Headset |
One 3.5 headphone jack |
|
|
Power Supply |
DC 5V 2A |
|
|
PTZ Control |
Built-in horizontal and vertical control motor |
|
|
Power Consumption |
2W |
|
|
Working Temperature |
0°C-+55°C |
|
|
Working Humidity |
10%-90% |
|
|
Dimensions (mm) |
150*95*160mm |
|
|
Weight |
500g |
|
|
Installation |
Rack mount
|
