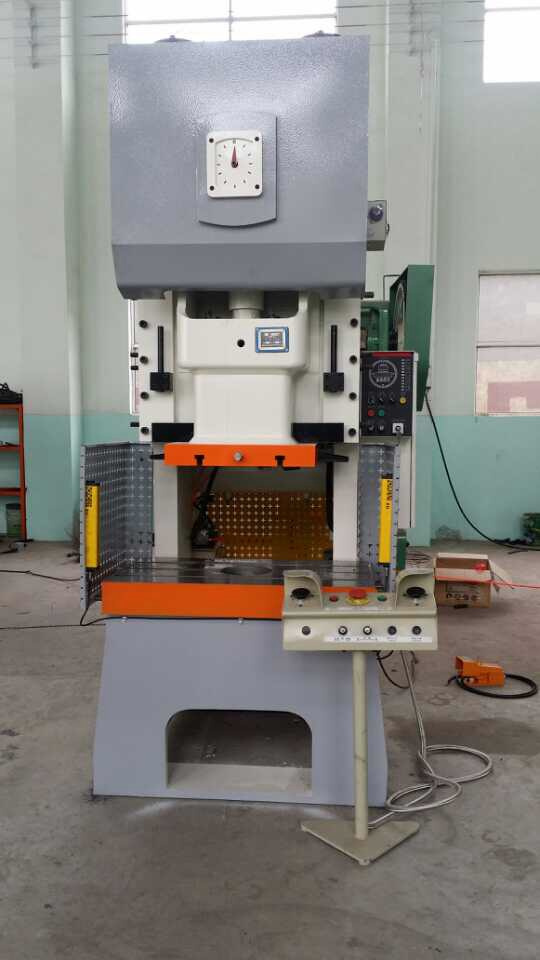

Jh21 Aluminum Foil Container Product Line High Precision Power Press Safe Machine Punch Tool

Jh21 Aluminum Foil Container Product Line High Precision Power Press Safe Machine Punch Tool
Supplier: Maanshan Baide CNC Machinery Co., Ltd.
Price: US $ 1500-250000set
Min Order: 1set
Quantity::
Trade Terms: FOB,CFR,EXW
contact supplier

Product Specifications

Prod Model: JH21
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CNC Or Not: Normal
Place Of Origin: Anhui, China (Mainland)
Model Number: Jh21
Brand Name: Baide
Color: White or as Your Requirement.
Delivery Date: 10 Days
Quality Guarantee: 1 Year
Accessories: Standard
Type: High-Speed Punching Machine
Controlling Mode: CNC
Automatic Grade: Automatic
Power Source: Mechanical Drive
Precision: High Precision
Certification: ISO9001

Product Description

Introduction of JH21type Pneumatic punching machine from China
Equipped with multi pitmen framework, suitable for flat stretching.
Welded body with steel plate and high intensity.
Combined wet multi discs friction clutch and brake.
Cluster gear adopts the flooding oil lubrication.
Six-face rectangle lengthen guide.
Equipped with hydraulic overload protecting device.
Adopts electric shut height adjustment with digital display.
Equipped with lifting balance cylinder.
Duplex valves imported from Japan.
Electric compelling grease lubrication system.
Balancing cylinder adopts manual lubrication system.
One set of blowing device.
Electronic cam control.
Controlled by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Equipped with optional air cushion device, photoelectric protector, wich can used to work with various automatic equipments.
Welcome for your inquiry of JH21heavy duty pneumatic power press machine
Technical parameter
ItemUnitJH21-25JH21-40JH21-63JH21-80JH21-100JH21-125JH21-160JH21-200JH21-250JH21-315JH21-400
Nominal PressurekN2504006308001000125016002000250031504000
Nominal Pressure Strokemm3444.55566688
Slide Strokemm80100120130140150160160200250250
No. of Strokes per minuteFixedSPM10085606050505050303025
VariableSPM70-11050-9545-7540-7030-6030-6030-6035-6025-4025-4020-25
Max. die Heightmm250270300330350380400450500550550
Die Height Adjustmentmm506070809090110110110120120
Throat Depthmm210225260310360370380400430430510

Bolster Surface Size
F.B.mm4004405006006807007407808408401000
L.R.mm70081085010001100120013001400140015001800
Thickness of Bolstermm80110130140155160165170175180180

Slide Surface Size
F.B.mm250340400460520520580590650700700
L.R.mm360410480540630630800800880950950
Stemholemmφ40X50Φ40x65φ50X65φ50X80φ50X85φ50X85φ65X90Φ65x90Φ65x100Φ65x110Φ65x95
Distance between Uprightsmm4505305806006306807808209201000900
Optional CushionPressurekN

456060100100145145145145145
Strokemm

50505070708080808080
Main MotorModel

Y100L2-4Y112M-4Y132S-4Y132M-4Y132M-4Y160M-4Y160L-4Y180M-4Y200L2-6Y225M-6Y250M-6
PowerkW345.57.57.5111518.5223037
                 Slide MotorModel







YPE500-4ZYPE500-4ZYPE500-4ZYPE750-4ZYPE750-4ZYPE1100-4ZYPE1500-4ZYPE1500-4Z
PowerkW





0.50.50.50.750.751.11.51.5
Overall DimensionF.B.mm13651410159017741830193121232177270027003220
L.R.mm890990109011861325137815131540162219201800
Heightmm21052320273030853010308433003380386543504600
Gross Weightkg280042005700690010350118001350017500226002800035800

NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand
We will reply within 12 hours.


Maanshan Baide CNC Machinery Co., Ltd is a professional manufacturer of metal bending machine, metal forming machine and according machine tools. The main machines we manufacture are; 4 column hydraulic press, single column hydraulic press, pneumatic power press, mechanical power press, CNC power press, mechanical shearing machine, hydraulic swing beam shearing machine, hydraulic guillotine shearing machine, CNC shearing machine, hydraulic plate press brake, CNC press brake, 3 roll plate bending machine, 4 roll plate bending machine, combined iron worker machine, hole punching machine, plate leveling machine, profile bending machine, CNC cutting machine, cut to length line, slitting line, duct manufacture machines, etc.

Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.

All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include; Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers"as our target, hope to create the best future with old and new customers.
