Jic Female Thread 74 Cone Hydraulic Hose Fittings (26711)

Name: Jic Female Thread 74 Cone Hydraulic Hose Fittings (26711)
Brand: china-manufacturer-directory.com
SKU: 697476722
Availability: InStock
Rating: 4.3 (48 reviews)

Price:	US $ 0.012-0.85/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

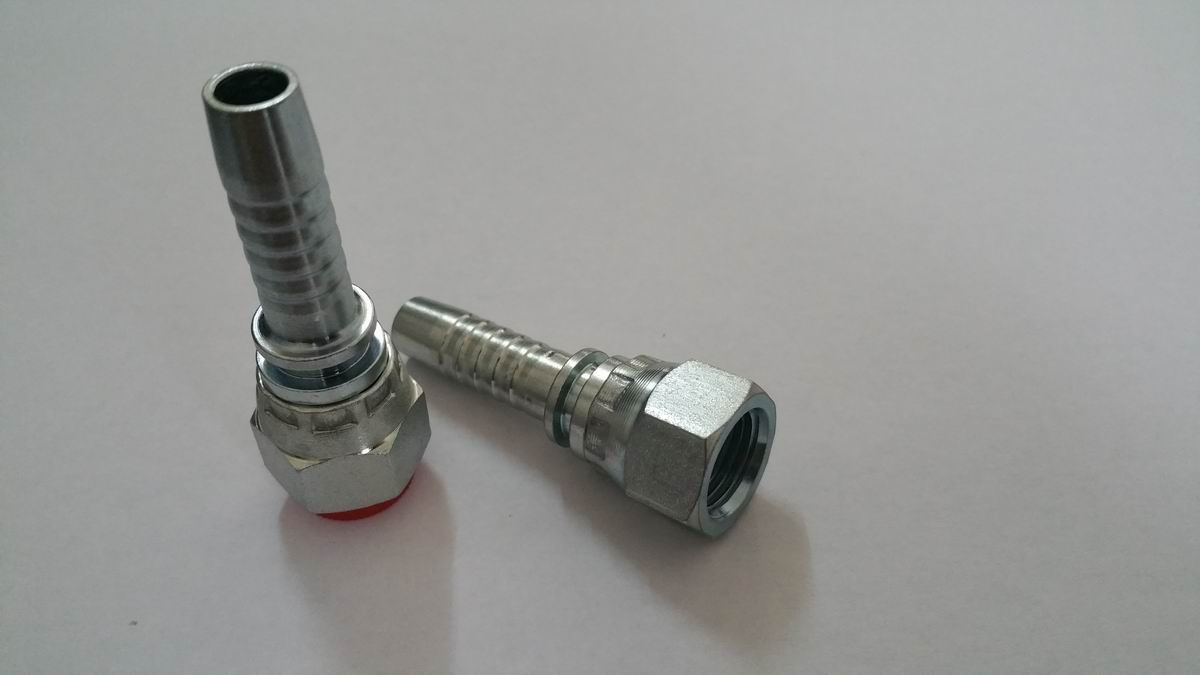

JIC Female Thread 74 Cone Hydraulic Hose Fittings (26711)

Material: Carbon Steel, Stainless Steel
Surface Treatment: Yellow Zinc-Plated

Hydraulic adaptor including:
Hose Joint,Hydraulic connector, union, cross,tee, elbow, accessories(front ferrule, back ferrule, nut, tube&cap)
1. Material: Carbon Steel, Stainless Steel

2. Surface Treatment: Yellow Zinc-Plated

3. Hose fitting: Metric/BSP/NPT/JIC/ORFS/ORB/SAE/DIN/JIS/Ferrule/Flange/Elbow/tee/cross etc. The standard sizes range from 3m to 25mm, 1/8" to 1" with variety of end connections according to BSP, NPT, BSPT, METRIC, UNF, or any other thread standard.

4. We offer OEM seivice base on clients drawings or samples.

5. Delivery time: within 50days.

6. SGS China manufacturer company certification.

Number:26711
Name:JIC Female 74°Cone Seat SAE J514
Description:
PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S2
26711-04-03	7/16"X20	5	3	14.5	9	15
26711-04-04	7/16"X20	6	4	15	9	15
26711-05-04	1/2"X20	6	4	15.5	9.5	17
26711-05-05	1/2"X20	8	5	15.5	9.5	17
26711-05-06	1/2"X20	10	6	15.5	9.5	17
26711-06-04	9/16"X18	6	4	15.5	10.5	19
26711-06-05	9/16"X18	8	5	15.5	10.5	19
26711-06-06	9/16"X18	10	6	15.5	10.5	19
26711-06-08	9/16"X18	12	8	16	10.5	19
26711-08-06	3/4"X16	10	6	17.5	11	24
26711-08-08	3/4"X16	12	8	18	11	24
26711-08-10	3/4"X16	16	10	19.5	11	24
26711-10-08	7/8"X14	12	8	18.5	13	27
26711-10-10	7/8"X14	16	10	20	13	27
26711-10-12	7/8"X14	20	12	20	13	27
26711-12-10	1.1/16"X12	16	10	21.5	15	32
26711-12-12	1.1/16"X12	20	12	21.5	15	32
26711-12-16	1.1/16"X12	25	16	23	15	32
26711-14-12	1.1/16"X12	20	12	21.5	15	36
26711-16-16	1.5/16"X12	25	16	23	16	41
26711-16-20	1.5/16"X12	32	20	24	16	41
26711-12-08T	1.1/16"X12	12	8	19	15	32
26711-16-12T	1.5/16"X12	20	12	18.5	16	41
26711-20-16T	1.5/8"X12	25	16	23	17	50
26711-20-20W	1.5/8"X12	32	20	26	17	50
26711-24-20W	1.7/8"X12	32	20	26.5	20	55
26711-24-24W	1.7/8"X12	40	24	26.5	20	55
26711-32-24T	2.1/2"X12	40	24	27	23.5	75
26711-32-32T	2.1/2"X12	50	32	27	23.5	75
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26712-XX-XX.

1.Material :	Carbon Steel, Stainless Steel .etc.
2 .Size:	1/ 8 "- 2 "
3. Pressure Rating:	15000PSI
4.Logo:	Any logo is available
5.MOQ:	200 pcs
6.Samples Time:	(1)3-5days-If you want to customize your product and logo.
	(2)1day-For our existing samples for reference.
7.OEM Accepted	Yes
8.Certification available:	Yes
9.Packing Details:	Box Inside & Wooden pallets
10.Production Capacity:	1000000pcs Per month.
11.Payment Term:	(1) T/T,WESTERN UNION
	( 2)T/T 30% IN ADVANCE,T/T 70% AFTER COPY OF B/L

Prod Model:	26711
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hydraulic Fitting:	Hose Fitting
Surface:	Zinc-Plated
Color:	White or Yellow
Original Place:	Qingdao, China
Manufacture:	Factory
Standard:	BSW
Material:	Medium Carbon Steel
Connection:	Male

QINGDAO UNITE MACHINERY Co., Ltd(HAITE GROUP) is located in the beautiful seaside city-Qingdao China, which has very beautiful picturesque view and very convenient transportation. Qingdao port is one of the biggest ports of China and our factory is about 15 minutes to Qingdao airport. We specialize in the manufacturing of hydraulic fittings for many years and we have distributors and buyers all over the world.

Products: Our main products include: Ferrule, Hydraulic fitting(Metric, British, American, staplelok, etc. ), Banjo, Adaptor, Hose assembly, and Hose Crimper machinery.

R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.

QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.

Market: We focus on both domestic and international markets. Our buyers and distributors include some big and prestigious companies.

Principle: Quality first! Your satisfaction is our biggest goal!
