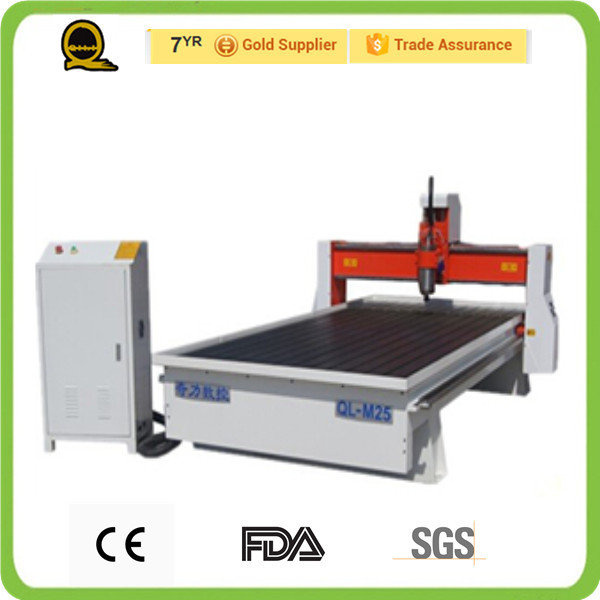

Jinan QL wood machine /engraving machinery cnc router
(QL-M25)
Product Features:
1. Highest speed at more than 32m/min and highest efficiency.
2. Durable and high accuracy.
3. High power spindle made of best steel.
4. Woodworking CNC Engraver with two motors and unique two rack driving. Stable movement and no deformation or vibration after a long-time work at a high speed.
5. Special Axle X dust-proof system protects Axle X and ensures its high accuracy.
6. DSP system, no need of computer
Standard Configurations
Square Tube Lathe Bed, absorption table-board
X Y with racks, all with square guides
Axis Y with two motors
DSP System
4.5 KW Spindle and Transducer
Large Leadshine driver
5.5 KW High-power Vacuum Pump
Auto Lubrication System
Max. Speed 30-40m/min
Option: 2.2Kw dust collector.
| Technical Data |
| Working Area | 1300mm*2500mm |
| Z Working Area | 200mm |
| Table Size | 1480mm*3000mm |
| Max. Speed | 8m/min |
| Max. Working Speed | 6m/min |
| Working Delicacy | 0.01mm |
| Repositioning Accuracy | 0.05mm |
| Feeding Height | 150mm |
| Command Code | G Code*. u00*. mmg*. plt |
| Working Software | Windows98/2000/xp |
| Power (not including spindle) | 1840w |
Working voltage
| AC220V/50HZ |
| Spindle Power | 4.5kw |
| Spindle Running Speed | 0-24000rpm |
| Motor | Stepper |
Product Uses
1.Furniture Decoration Industry:A large area flat plate engraving,wood, panel furniture carving,wood art
murals,wood cabinet doors carving.
2.Wood Products Processing:Sewing machine table, electrical counter table, sports equipment.
3.Artwork:Photo Frame, jewelry box.
4.Musical Instrument Industry:Instrument three-dimensional surface engraving,shape cutting.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials for processing
and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problemFree after-sales service life for
machine,please feel free contact us if your machine have any problem. we will give you 24hours service from
phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name.
There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer
Guarantee&Aftersales Service
1.We will deliver the machine as soon as possible. We will deliver the normal models within 7 days after depost payment For abnormal models, the delivery time is at most 15 days .
2.Our technicians will provide on-site service to customers in china. We will supply the whole day on-line
service to foreign customers. According to foreign customer's requirement, we will arrange technicians go
abroad to install or maintenance the mahcines.
3.Within the warranty period and the machine parts were damaged under normal using condition, we will
offer new parts for free.
4.We will offer software upgrades for free.
5.The company will research the staffs service attitude aperiodically to improve the service satisfaction.
welcome your inquiry and to be our agents.all kinds machines you can choose.
