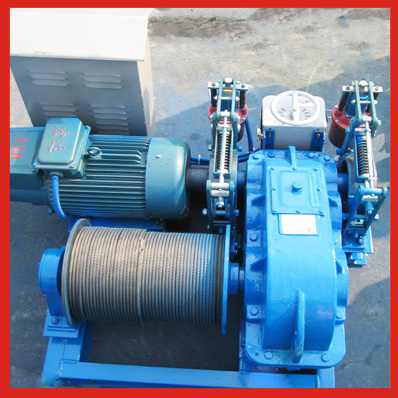

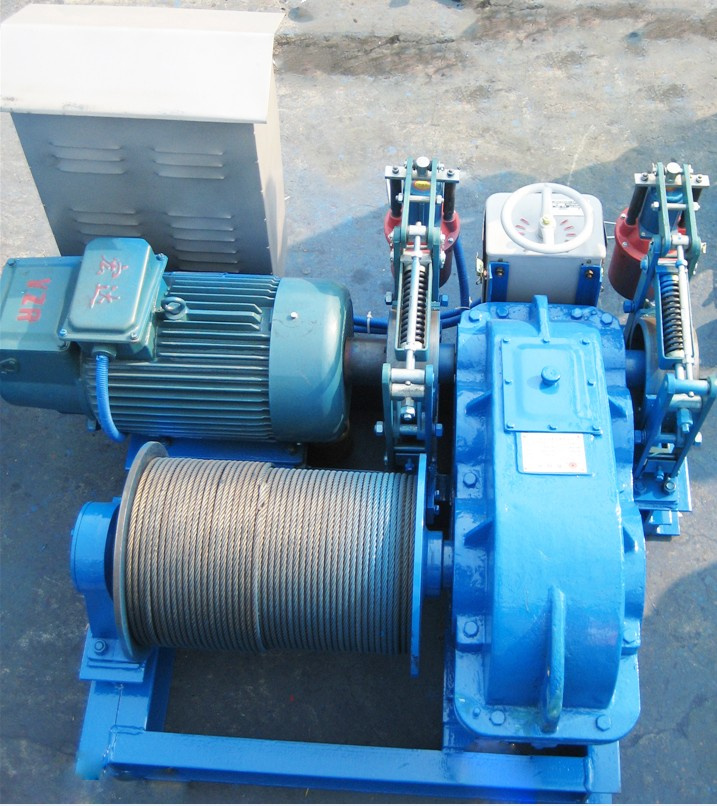

Jk Fast Lifting Speed Winch with Double Braking Safety Device

Name: Jk Fast Lifting Speed Winch with Double Braking Safety Device
Brand: china-manufacturer-directory.com
SKU: 694107172
Availability: InStock
Rating: 4.3 (123 reviews)

Supplier:	Zhongyuan Shengqi Industrial Co., Ltd.
Price:	US $ 1500/Piece
Min Order:	1Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JK1t-60m
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	up to 10t
Lifting Height:	up to 500m
Work Duty:	Weight Level
Driven Type:	AC
Feature:	Antiseptic
Standard:	National Standards
Type:	Electric Winch
Carrying Capacity:	Middle-Level
Running Mode:	Stationary
Tonnage:	0-100t

Product Description

Name: Electric Winch/Winch/Electric hoist/Hoist/trolley

Capacity: From0.5T-10T

Winch Lifting height: 1M-500M

Winch Type: JK type (high lifting speed);

Winch Components: Drum, steel wirerope, reducer, motor, and brake.

Winch Usage: With its compact structure, light deadweight and big capacity, the winches are widely used in Industrial field, mine, metallurgy, Crane, Construction, Mechanical field, Bridge, and Hydropower station.

Basic parameters Model	Rated Rally KN	The average speed rope m/min	Capacity of rope m	Rope diameter	Motor Model	Electrical power KW	Size appearance mm	Machinery weight KG


JK0.5	5	22	110	Φ7.5	Y100L2-4	3	710690490	200
JK1	10	22	80	Φ9.3	Y112M-4	4	710610410	300
JK1.6	16	24	115	Φ12.5	Y132S-4	5.5	940900570	500
JK2	20	24	110	Φ13	Y132M-4	7.5	940900570	550
JK3.2	32	30	250	Φ15.5	YZR180L-6	15	16401430820	1150
JK5	50	30	240	Φ21.5	YZR225M-6	30	19001738985	2500
JK8	80	30	210	Φ26	YZR280S-8	45	198017901100	3500
JK10	100	30	300	Φ30	YZR315S-8	55	225025001300	5100

Zhongyuan Shengqi Co., Ltd is established in 1988. Now it has been in existence for there decades. This time has seen it achieve rapid growth, to become one of the leading manufacturers of EOT, GANTRY, and SEMI GANTRY CRANES in China. It now has total asset 54 million US$, with total area 389000m2.

SHENGQI has also been certified as an ISO 9001-2000 company, and follows the highest quality standards. Every crane manufactured by SHENGQI is designed to meet individual customer requirements and work in a large variety of Industries across China and abroad. Cranes manufactured at our factory vary in terms of capacity and design. From five tonnage cranes meant for general duty, to 300 ton cranes which are specially designed as per client specifications. Currently we have the capability to manufacture cranes up to 500 tons.

Our vast experience on all type of applications, critical components and installation conditions allow us to grant an accurate response to your requirement.
