Jly Planetary Laying-up Machine, Laying-up Machine

Name: Jly Planetary Laying-up Machine, Laying-up Machine
Brand: china-manufacturer-directory.com
SKU: 770971845
Availability: InStock
Rating: 4.6 (120 reviews)

Supplier:	Anhui Changjiang Jinggong Wire & Cable Machinery Co., Ltd.
Price:	US $ 8000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JLY-2000/1+1+3; 1600/1+1+3; 1250/1+1+3; 1250/1+6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Precision:	High Precision
Certification:	ISO

Product Description

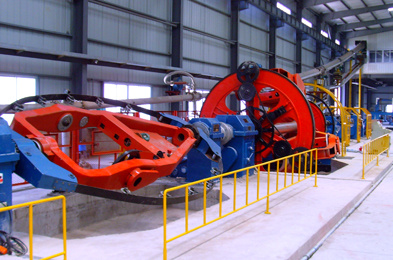

JLY Planetary Laying-up Machine

1. Application:

The machine is used for stranding middle-low voltage powder cable, communication cable, control cable and mining cable. The section of stranded cores can be round or sector.

2. Description:

The line is maily used for laying-up of plastic or rubber insulated conductors, telephone cables and power cables etc.

The machine is provided with back-twist, electric pre-twist, bobbin is clamped and released by electromotion.

The machine adopts counter shafts linkage, guarantees stranding pitch precise and steady.

The machine adopts PLC control unit to command and coordinate the whole line work. The electrical control system is advance in technology, easy in operation, reliable in running.

	Max. rotation speed (rmp)		Loading capacity (kg)
Bobbin size (mm)	3B	6B
1000	34	34	2000
1250	28	28	3000
1600	21	-	4000

3. Guarantee period and Services:

3.1. 12 months guarantee period, life-long maintenance for resin transfer molding machine.

3.2. Engineerer are available to service overseas for installing, debugging and trainning.

3.3. Quality Assurance: CE,ISO,SGS Certificate and Standards.

3.4. Manufacturer's price: Factory directly sale, most competitive price.

3.5. On site test and inspection are available, and all our products are strictly inspected before shipment, can ensure the order enough quantity, good quality and timely delivery.

4. Our company:
Anhui Changjiang Jinggong Wire & Cable Machinery Co., Ltd is a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China. Our main products consist of three main series, drawing machine, stranding machine and laying up machine include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying up machine, laying-up stranding machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, extruder, optical fiber cable SZ stranding line, optical fiber sheath production line and relevant auxiliary equipment.

5. That's our connected informations:
Yangtze Precision Machinery & Technology Co.,Ltd.
Changjiang Jinggong Industrial Park, Lu'an Economic
Development Zone, Anhui, China 237161
Tel:+86-564-3634-718
Fax:+86-564-3634-717
Mobile:+86-15855150140
www.ahcjcm.com

Anhui Changjiang Jinggong Wire & Cable Machinery Co., Ltd. is a subsidiary of Jinggong Holding Group with registered capital of 40 million yuan and total investment 150 million yuan. With continuous development and extensive experience, it becomes a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China.

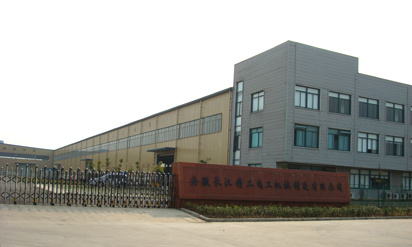

Our factory is located at Changjiang Jinggong Industry Park, Lu' An Economic Development Zone. The modern plant covers an area of 48, 000 square meters, equipped with large scale processing machine and a complete range of test equipment. Our company is a member of China Electrical Equipment Industrial Association and Shanghai Wire and Cable Industry Association. We have established the Quality Management System (QMS) with ISO9000 standard and achieved SGS certification of golden supplier on Made-in-China. Three main series, over 40 kinds of products have acquired CE marking for Europe market.

Our feature products include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying-up machine, planetary core laying-up machine, armoring machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, trolley wire drawing machine, extruder and relevant auxiliary equipment.

Technology To Further Our ' People First' Philosophy. By offering the customers full technical support, and services including commissioning, training of personnel, one year warranty and continuous spare part supply, we always aim to provide our global customers top quality products and service.
