Jp Vertical Balancing Machine for Corrosion Axial Fan Phld-16

Product Specifications

Prod Model:	PHLD-16
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Length:	1200 Mm
Width:	1200 Mm
Height:	1300 Mm
Gross Weight:	530 Kg
Type:	Vibration Testing Machine
Weight:	100-500Kg
Power Source:	AC380V

Product Description

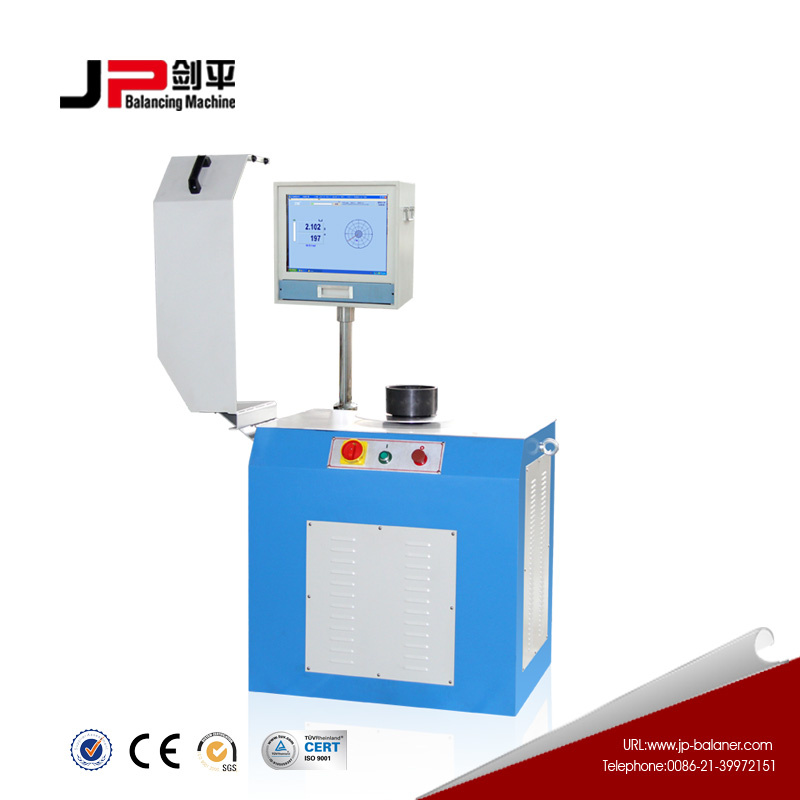

Jp Vertical Balancing Machine for Corrosion Axial Fan PHLD-16

Production Description

Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
. Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped

Range of Application

The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk, brake drum. Saw blade. Clutch, belt pulley, chuck, pump impeller, flywheel, grinding wheel, range hood fan, brake, torque converter, tool etc. High speed and precision are advanages of this balancing machine.
According to user's requirement, The machine can install de-weight device

Special Features

The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters

Technical data at a glance	PHLD-16	PHLD-42	PHLD-65
Max Mass of  Workpiece (with clump)  (kg)	16	42	65
Max Diameter of Workpiece (mm)	510 With hood  800Without hood	510 With hood 800 Without hood	510 With hood 800 Without hood
Height of Workpiecemm	160	160	160
Rotation Speed of Main Axis (r/min)	900	800	700
Motor Power  (kw)	1.5	1.5	2.2
Min Achievable Residue Unbalace Amount (emar)	5g. mm/kg	5g. mm/kg	5g. mm/kg

After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.


About Us:
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,

There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Factory:www.jp-balancer.com
