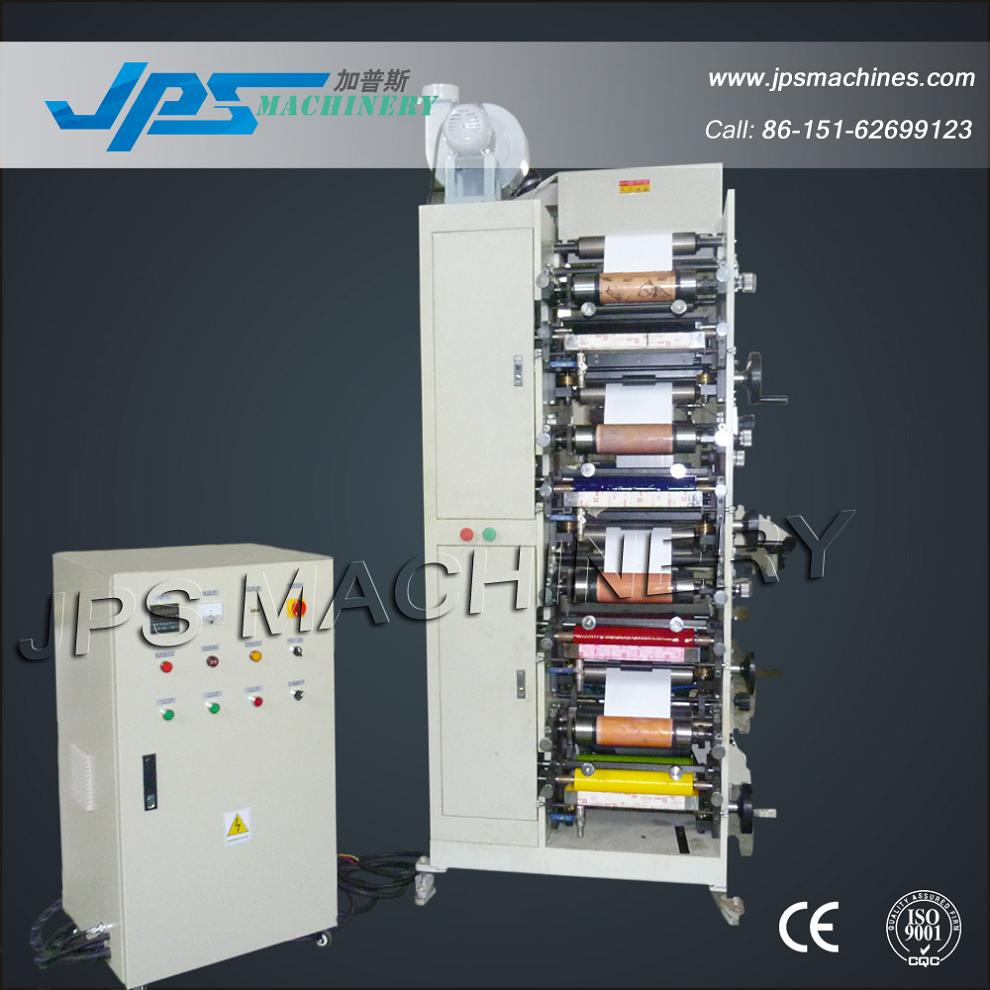

Jps320-4c Non-Woven Fabric Flexographic Printing Machine
Product Specifications
| Prod Model: |
JPS320-4c |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Jps320-4c |
| Printing Speed (M/Min): |
60 |
| Printing Color (Colors): |
4 |
| Max. Paper Width (Mm): |
330 |
| Max. Printing Width (Mm): |
320 |
| Max. Unwinding Diameter (Mm): |
600 |
| Max. Rewinding Diameter (Mm): |
600 |
| Total Power: |
8.5kw |
| Dimension (Mm): |
2500*1100*2100 |
| Warramtee: |
1 Year |
| Type: |
Ink Jet |
| Embossing Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Plate: |
Letterpress Printing |
| Application: |
Label Printing Machine |
| System Supported: |
Other |
| Printing Interface: |
Other |
| Printing Speed: |
60m/Min |
Product Description
JPS320-4C Non-woven Fabric Flexographic Printing MachineCharacteristic:
1. Adopt the ceramic anilox roller to spread ink.
2. Unwinding and rewinding are controlled by magnetism power brake, clutch. (or by automatic tension controller of Mitsubishi , made in Japan).
3. Printing unit adopt 360º for registration.
4. Printing unit have one infrared to dry the device group each.
5. The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process
8.This kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.Optional configuration:
1. web guiding
2. plate mounting with microcomputer display screen
3. computer monitor
4. turn bar
5. slitting station
6. rotary die cutting station
7. laminating
8. UV dryer
9. Corona treatment
10. Cold foil
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines Printing samples:
Model
Specification | JPS320-4C |
| Printing speed (m/min) | 60 |
| Printing color (colors) | 4 |
| Max. paper width (mm) | 330 |
| Max. printing width (mm) | 320 |
| Max. Unwinding diameter (mm) | 600 |
| Max. rewinding diameter (mm) | 600 |
| Printing perimeter (mm) | 175-380 |
| Registration accuracy(mm) | ±0.1 |
| Voltage (v) | 380±10% |
| Total power | 8.5kw |
| Weight of machine (kg) | 2000/2200 |
| Dimension (mm) | 2500*1100*2100 |
Standard configurations:
| Standard configurations | Option |
| 4×ceramic anilox roller | AC contactor | Corona treatment |
| 8×printing roller | Variable frequency | Plate mounting |
| Magnetic powder brake | Push button | Video system |
| Magnetic particle clutch | Control panel | Web guide |
| 1×Unwinding tension controller | Hall switch | Lamination unit |
| 1×Rewinding tension controller | Main motor | Rotary die cutting unit |
| 4×Infrared dryer | 2×shaft | Dividing cutting device |
| 4×ink roller | a turn bar | UV dryer |
| Breaker | A lamination station | Cold foil |
| Temperature control | A rotary die cutting station |
|
Kunshan Jiapusi Machinery Co., Ltd focus on manufacturing, developing, marketing and exporting label flexographic printing machine, die cutting machine, slitting machine, sheeting machine, laminating machine and paper cup printing machine, punching machine and forming machine. Our machinery are widely applied in various label and paper cup printing and production ( such as: Paper cup, clothes trademark, the label of electronics, toys, gifts, stationery and the supermarket barcode).
Our company owns experienced teams including professional technicians, engineers, sales and after-sales service personnel, to supply customers one whole set of complete technical support and after-service, as the continuous improvements of the company, the products have come up to advanced world standard, Adhering to the mission of "Value-create for customer, Technology-first, Quality-guarantee, Integrity-centered ", the enterprise will always supply customers high quality product and perfect service.
All our products are under CE and ISO9001: 2000 certification, which are sold well all over the world, such as North America, South America, Asia, Middle East, Oceania, Africa^. ., our enterprise has got high popularity with its top quality and excellent credibility, we hereby sincerely welcome your cooperation to create mutual benefits together.
