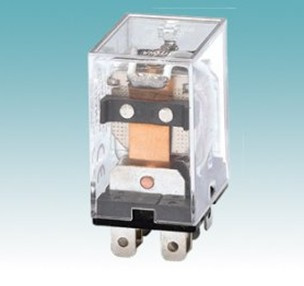

JQX-13F 2Z(LY2) Mini Relay

Name: JQX-13F 2Z(LY2) Mini Relay
Brand: china-manufacturer-directory.com
SKU: 711379815
Availability: InStock
Rating: 5 (147 reviews)

Supplier:	Naidian Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LY2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. Auto mini relay JQX-13F
2. 12V 8pins, unit weight: 0.035Kg
3. HIgh quality and best price

Model series	JQX-13F(LY)
Size: LWH (mm)	28.021.535.0
Contact form	1C,2C
Material	Silver Alloy
Max. operating current	1C:16A 2C:10A
Max. operating voltage	250VAC/30VDC
Max. operating power	4,000 480W/2,500VA300W
Rated load(resistive load)	1C:16A 250VAC/30VDC 2C:10A 250VAC/30VDC
Rated voltage	5-220VDC,6-220VAC
Normal operating power	1.2VA/0.9W
Insulation resistance ( MΩ )	500
Dielectric strength(between coil and contact)	1,500VAC
Ambient temperature	-40 °C TO +70 °C
Operate time/release time	25ms/25ms
Mechanical life (Min.)	1*10 7
Electric life (Min.)	1*10 5
Terminal type	PCB, Plug-in type, install type

Established in1989, With a 20-plus year history of leadership, Naidian Group Co., Ltd located in China Electric Capital - Liushi where is regarded as low voltage electrical equipment production base of China. We design, manufacture and market products for customers in industries ranging. Naidian is an professional manufacturer & exporter of relays.

We mainly produce all types of relays, such as Power Relay, PCB Relay, General-purpose Relay, Solid State Relay, Time Relay, Automotive Relay, Counter, Thermal Relay, Electromagnetic Relay, Earth Leakage Relay, liquid Level Relay, motor control motor protection series, Relay Socket.

ISO9001 quality management have been strictly operating in our corporation, Meanwhile the products have been approved by UL, cUL, TUV, CE, CCC Certificate. The company is advanced in technical strength and has adopted auto, semi-auto production line to manufacture product. We are also strong in the technical reform, new items development and some products have passed new design patent.

Looking into the future, the group will face more business opportunity, and more challenge. Naidian will comply with request and development of epoch, continue to further and reform innovation, expand capital strength, implement brand strategy, create the new increasing point, and look forward to cooperate with customers at home and abroad.

Excellence, share with the world. ------- Naidian Group Co., Ltd.
