Jqx-58f High Power Relay 60A

Name: Jqx-58f High Power Relay 60A
Brand: china-manufacturer-directory.com
SKU: 711147615
Availability: InStock
Rating: 4.8 (89 reviews)

Supplier:	Naidian Group Co., Ltd.
Price:	US $ 1.0/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JQX-58F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

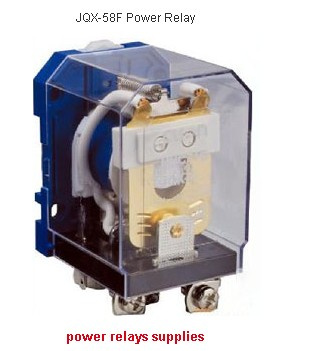

JQX-58F High Power Relay 60A

Outline Dimensions And Wiring Diagram

Contact Data

Contact Ratings	1Z,1H,1D
Contact Resistance	30mΩ (1A 6VDC)
Contact capacity	60A 250VAC 2HP 250VAC

Characteristics

Insulation Resistance	1000MΩ, 500VDC
Dielectric Strength	Between coil and contacts 2500VAC 1minute
	Between open contacts 1200VAC 1minute
Operate Time	25ms / 25ms
Terminal Type	Screw

Coil power

Nominal Coil Power

DC2.0W AC2.5VA

Specification

Nominal Voltage VDC	Pull-in Voltage VDC	Release Voltage VDC	Coil ResistanceΩ:±10%	Nominal Voltage VAC	Pull-in Voltage VDC	Release Voltage VDC	Coil ResistanceΩ:±10%
6	4.20	0.60	30	6	4.80	1.80	14.4
12	8.40	1.20	130	12	9.60	3.60	57
24	16.8	2.40	450	24	19.20	7.20	250
48	33.6	4.80	1820	48	38.40	14.40	921
60	42.0	6.00	2800	110	88.00	36.00	5000
110	88.0	11.0	9650	220/240	176.00	72.00	18000

Established in1989, With a 20-plus year history of leadership, Naidian Group Co., Ltd located in China Electric Capital - Liushi where is regarded as low voltage electrical equipment production base of China. We design, manufacture and market products for customers in industries ranging. Naidian is an professional manufacturer & exporter of relays.

We mainly produce all types of relays, such as Power Relay, PCB Relay, General-purpose Relay, Solid State Relay, Time Relay, Automotive Relay, Counter, Thermal Relay, Electromagnetic Relay, Earth Leakage Relay, liquid Level Relay, motor control motor protection series, Relay Socket.

ISO9001 quality management have been strictly operating in our corporation, Meanwhile the products have been approved by UL, cUL, TUV, CE, CCC Certificate. The company is advanced in technical strength and has adopted auto, semi-auto production line to manufacture product. We are also strong in the technical reform, new items development and some products have passed new design patent.

Looking into the future, the group will face more business opportunity, and more challenge. Naidian will comply with request and development of epoch, continue to further and reform innovation, expand capital strength, implement brand strategy, create the new increasing point, and look forward to cooperate with customers at home and abroad.

Excellence, share with the world. ------- Naidian Group Co., Ltd.
