Product Specifications
| Prod Model: |
JS2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: |
3200L |
| Discharge Capacity: |
2000L |
| Max. Diameter Of Aggregate: |
80/60 |
| Mixer Motor: |
QA225s4a |
| Mixing Power: |
2x37kw |
| Condition: |
New |
| Certification: |
ISO9001: 2000 |
| Type: |
Concrete Mixer |
| Machining Process: |
Hydraulic |
Product Description

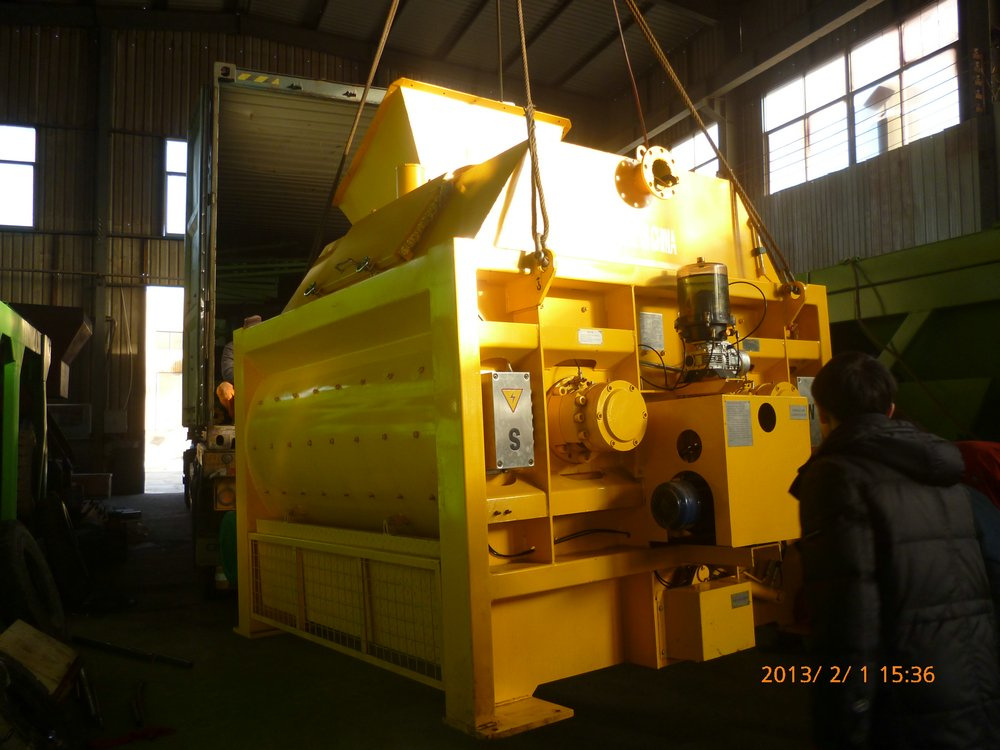

Characteristics of JS2000 Concrete Mixer
1. Twin shaft forced concrete mixer
2. Discharged volume: 2000L
3. One-piece spiral mixing arm
4. Discharged by hydraulic pressure
5. Both the gearbox and the main shaft are jointed by coupling, which can drive the big gear directly.
6. Used for long time and is high effiecent.
JS2000 concrete mixer is dual horizontal shaft concrete mixer, which can work independently or composed a concrete batching plant with PL3200 concrete batcher and other equipments. It can applicable to large, medium and small precast concrete project and roads, bridges, highways and hydropower station.
This kind of concrete mixer can mix subarid rigid concrete, plasticity concrete, flow ability concrete, light aggregate concrete and various mortar. Drum sets with wear resistant castliner and mixing blade, which is durable and easy replace.
|
Main Technical Parameters |
JS2000 |
|
Loading Capacity(L) |
3200 |
|
Discharging Capacity (L) |
2000 |
|
Productivity (m3/h) |
≥100 |
|
Max. Dia. Of Pebble/Macadam (mm) |
80/60 |
|
Mixer Motor |
Type |
QA225S4A |
|
Power (kw) |
2x37 |
|
Hoisting Motor |
type |
|
|
Power (kw) |
|
|
Hopper Lifting Speed (m/min) |
|
Outline Diameters (mm)
(LxWxH) |
Transporting Status |
5860x2250x2735 |
|
Working Status |
10560x3876x10710 |
|
Total Weight (kg) |
15000 |
|
Discharging Height (mm) |
3800 |
