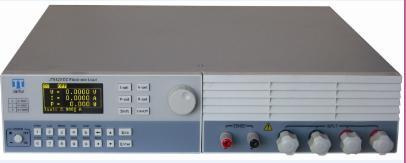

Jt6325A Programmable DC Electronic Load, Power Supply Test

Product Specifications

Prod Model:	JT6325A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Model		JT6325A
Input Rating	Power	1500W
	Voltage	0~50V	0~500V
	Current	0~12A	0~120A
	Min. operating voltage	2.8V@120A
	Full range current rising time	25uS
CC Mode	Range	0~12A	0~120A
	Resolution	0.2mA	2mA
	Accuracy	0.03%+0.05%FS
CV Mode	Range	0~50V	0~500V
	Resolution	0.5mV	5mV
	Accuracy	0.03%+0.02%FS
CP Mode	Range	1500W
	Resolution	16Bits
	Accuracy	0.1%+0.1%FS
CR Mode	Range	0.024Ω~25KΩ
	Resolution	16Bits
	Accuracy	0.1%+0.0004R
LED Mode	Bandwidth	100kHz above
	Rd Coefficient Range	0.001~1
Dynamic Operation Mode	Range	10uS~50S
	Resolution	2uS
	Accuracy	1uS+20PPM
	Slew rate	2.4A/mS~12A/uS
Voltage Meas.	Range	0~50V	0~500V
	Resolution	0.1mV	1mV
	Accuracy	0.03%+0.02%FS
Current Meas.	Range	0~12A	0~120A
	Resolution	0.1mA	1mA
	Accuracy	0.03%+0.05%FS
Ripple Meas.	Range	0~50V	0~500V
	Bandwidth	15Hz~250kHz
	Accuracy	0.03%+3mV	0.03%+30mV


Details
Front& Back Panel                  Features                       Technical Data                    Monitoring Software
Application: 1. Switch power supply  2. LED Power Supply    3. ATE Systems    4.Battery   5.Charger
FEATURES:
Modes & protection
 CC, CV, CP, CR, DYNA, List, Sweep, OCP modes.
  LED mode, real simulating LED loading.
  Over current, over voltage, over power, over temperature, polarity reversed protection.
Automatic test alone
   Press one button to complete load effect, ripple, dynamic, OCP and Short circuit test.
   Show complete test report and support step test.
Multi load synchronous control
Support up to 16 loads Sync. loading & dynamic test, fit for testing multi-output power supply.
Support up to 16 loads parallel mode for high power.
High rising speed (The full range current rising time is 10us)
High speed & accuracy
With 0.03% accuracy and 500kHz frequency, the current slew rate can be programmed.
500kHz sync. sampling frequency with 15Hz data update rate, 0.03% accuracy, 10uA &100uV resolution.
Real-time measurement of Vpp/Vp+/Vp-/Ipp/Ip+/Ip-
Dynamic test and control
Up to 50kHz dynamic loading frequency & real-time measurement of peak voltage (Vp+/Vp-).
Support sync. control and sync. dynamic loading of multi loads.
Support frequency sweep up to 50kHz.
List function
8 List files, each file with 200 steps and 2us resolution.
Support up to 50kHz complex waveform editing.
Each step current slew rate can be programmed.
Automatic OCP Testing & Pmax Measurement
Automatically test OCP.
Capture automatically Pmax & the voltage and current when working at the Pmax point.
Trigger and timing measurement
Support voltage/current waveform trigger and timing measurement.
Support external trigger for the power supply startup time / hold time measurement.
Support waveform capture and test for OVP protection point and protection time.
Application of program controlling
    SCPI Protocol, isolated RS232 serial port.
    5V/200mA power output, fit for the interconnection of equipments with different interfaces.
    TRIG_IN,RI,DFI,TRIG_OUT  four high-speed isolated I/O, supporting multi loads sync.control.
     Precision high speed digitizing measurement/ data capture(500kHz / 16 bits / 4096 points).
