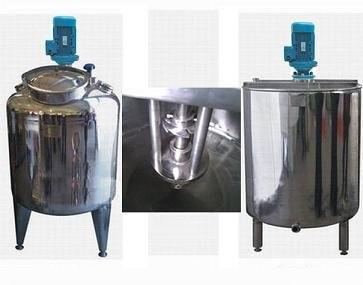

Juice /Beverage Preparation Tank with Mixing Agitator
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Juice preparation tank
Juice powder and water mixing tank
Beverage preparation tank
Aseptic Tank Double Jacketed Tank with Mixer agitatorStainless Steel Double Wall heating and mixing tankJacketed tank with mixer,
Choice of simple jacket tank (simple skin) or of retention double jacket tank (double skin) or tank and retentiona jacketed vessel is a container that is designed for controlling the temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulatedhot water heating tank with mixer; hot water tank with mixer Heating and mixing tankpreparation tank/mixing tank for dairy production line,, Shanghai, China (Mainland) The dairy preparation thus obtained is conveyed to storage tanks where it is also subjected to continuous stirring,because a typical dairy plant might manufacture yogurts, drinks and cheeses tanks . Our sanitary dairy mixing tanks could encompass the entire plant and all products, or we could create a partition between processes if it is possible to separate resource usage, raw materials, and so on. We make the assumption here that these different processes are independent and so decide to focus on the yogurt process.1.Mixing tank(sterilizing tank /aseptic tank) is made of SUS304 Or SS316L
2.Mixing tank(sterilizing tank /aseptic tank) can used for heating or coolling using dimple jacket.
3.with perlite or PU to keep heat /cold insulate.
4.All angles is treated in special process to guarantee no dead angle
5.this tank is widely used for heating or cooling or temperature holding
6.liquid foods like milk, juice, ice cream, chemical and biological areas.
7.With agitation or no can be an option, and it can be build according to the customer detail requirement. Mixing tank(sterilizing tank /aseptic tank) Standard configuration:
manhole, thermometer with figure display, ladder, CIP washing point, pull pole valve, controllable trestle, charging/discharging port and sampling valve etc.
Other Types are according to customer's requirement
If you are interested in this product ,please contact with me :

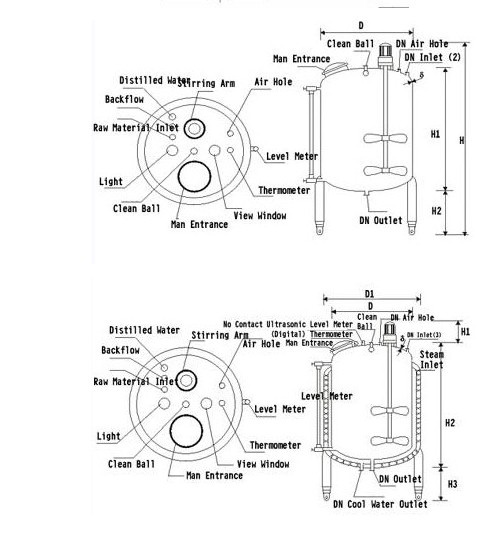

| (mm) | D1(mm) | H1(mm) | H2(mm) | H3(mm) | δ (mm) | DN(mm) |
| KQ 100 | 400 | 600 | 400 | 1050 | 250 | 3 | 32 |
| KQ 150 | 400 | 600 | 400 | 1450 | 250 | 3 | 32 |
| KQ 200 | 500 | 700 | 400 | 1450 | 250 | 3 | 32 |
| KQ 300 | 600 | 800 | 400 | 1450 | 250 | 3 | 32 |
| KQ 500 | 800 | 1000 | 500 | 1350 | 330 | 4 | 40 |
| KQ 600 | 800 | 1000 | 500 | 1550 | 330 | 4 | 40 |
| YRV1000 | 1000 | 1200 | 700 | 1750 | 330 | 5 | 40 |
| YRV1200 | 1000 | 1200 | 700 | 1950 | 330 | 5 | 40 |
| YRV1500 | 1100 | 1300 | 700 | 1950 | 330 | 5 | 40 |
| KQ 2000 | 1400 | 1600 | 700 | 1650 | 3360 | 5 | 40 |
| KQ 2500 | 1400 | 1600 | 800 | 2000 | 330 | 5 | 40 |
| KQ 3000 | 1500 | 1700 | 800 | 1900 | 330 | 6 | 40 |
| KQ 4000 | 1700 | 1900 | 900 | 2100 | 330 | 6 | 40 |
| KQ 5000 | 1700 | 1900 | 900 | 2850 | 400 | 6 | 50 |
| KQ6000 | 1800 | 2000 | 1000 | 2850 | 400 | 6 | 5 |
| Prod Model: |
JT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Double Jacketed Tank With Mixer: |
Heating or Cooling Tank with Mixer |
| Preparation Tank For Milk ,Yogurt: |
Aseptic Tank Set |
| Juice Preparation Tank Volume: |
200L to 20000L |
| Mixer Speed: |
36rpm,60rpm,960rpm,2900rpm |
| Mixer Shape: |
Customized |
| Preparation Tank Material: |
Ss304/Ss316 |
| Mixing Tank Function: |
Storage, Heating, Cooling, Mixing, Fermentation |
| Warranty: |
One Year |
| Wroking Life: |
More Than 10years |
| Tank Structure: |
Single Wall, Double Walls, Insulation Tank |
| Application: |
Milk Powder |
