Product Specifications
| Prod Model: |
RFC-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Beverage Processing Machinery |
| Model: |
Rfc-H18-6 |
| Capacity: |
5000bph |
| Bottle Shape: |
Round Ans Square |
| Bottle Diameter: |
50-110mm |
| Bottle Height: |
150-340mm |
| Cap: |
Ropp Cap |
| Weight: |
3500kg |
| Overall Size: |
2450*1800*2350mm |
| Warranty: |
1 Year |
Product Description

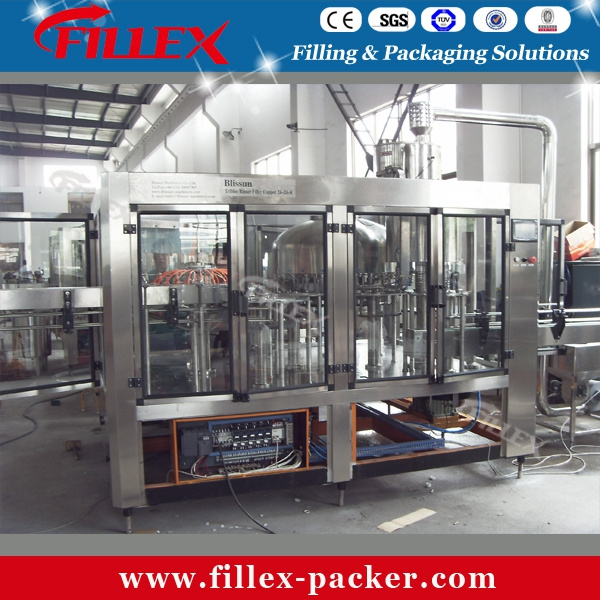

PET pulp Juice filling machine with CE standard
Certification: ISO 9001: 2000 and so on, all products with CE standard.
With more than 10 years experiences of offering customers turn-key projects.
All raw materials and components are from the first class reliable suppliers. Such as Siemens PLC and Touch Screen, SEW motors, Camozz pneumatic components and Schneider electric components.
Product: Fruit juice, tea drinks, energy drinks, etc
Volumn: 330-4000ml
Production capacity: 3000-36000BPH(500ml)
Filling type: Gravity filling
Filling temperature: 85-90° C
We specialize in manufacturing beverage production line,
Including packaging machinery, beverage processing machinery, filling machine, Water treatment equipment, packing machine, beverage machine, bottling machine, Blowing machinery and so on.
| Model: | RFC-H18-6 | RFC-H24-8 | RFC-H32-12 | RFC-H60-12 |
| capacity :500ml | 5000 | 8000 | 12000 | 20000 |
| bottle shape: | round or square |
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
| cap: | ROPP cap |
| filling precision: | ≤±5mm |
| filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
| rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
| filling volume :(L) | 3.5 | 4 | 6 | 8 |
| overall size:(mm) | 2450*1800
*2350 | 2780*2200
*2350 | 3600*2650
*2350 | 3800*2950
*2400 |
| weight: (kg) | 3500 | 4500 | 5500 | 11500 |
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
L1-2 & 3-5 Gallon Jar Bottle Water Plant
LBottle, Kind of Container Labeling Solutions
LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
