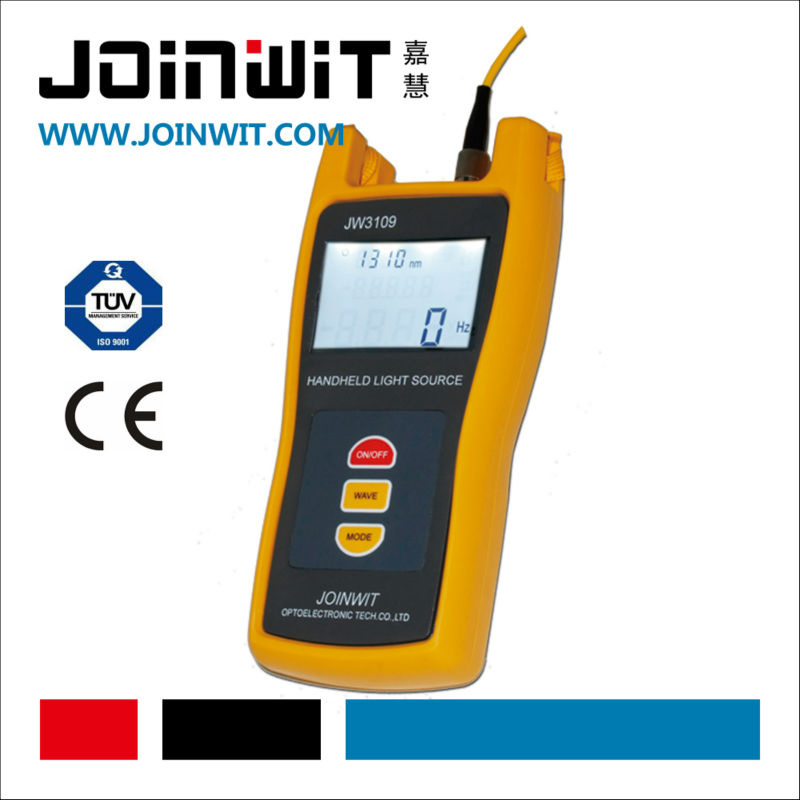

Jw3109 Handheld Optical Light Source

Product Specifications

Prod Model:	JW3109
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelengths(Nm):	650/850/1300/1310/1550
Modulation(Hz):	Cw,2,270,1k,2k
Optical Connector Type:	FC/PC
Dimension(Mm):	175*82*33
Emitter Type:	Fp-Ld,LED or Others Please Specify
Weight(G):	295
Warranty:	18 Months
Certification:	ISO
Condition:	New

Product Description

JW3109 Optical Light Source
JW3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements,
Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic network
characterization.

Specifications

Type	JW3109
Wavelengths(nm)	650	1310/1550	850/1300	850/1300/1310/1550
Emitter Type	FP-LD,LED or others please specify
Typical Output Power (dBm)	0	-7dBm for LD, -20dBm for LED
Spectral Width(nm)	1.    ≤10
Output Stability	±0.05dB/15mins;  ±0.1dB/ 8hours
Modulation Frequencies	CW,2Hz	CW,270Hz,1KHz,2KHz
Optical Connector	FC/ universal adaptor	FC/PC
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)	45
Operating Temperature(°C)	-10~+60
Storage Temperature(°C)	-25~+70
Dimension(mm)	175x82x33
Weight (g)	295
Joinwit Recommendation
JW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.

Standard Packages

MODEL	INCLUDES
All MODEL	JW3109 machie, Protective Rubber Boot, 3pcs 1.5V batteries,User Manual, Cotton swabs and Soft carrying case.
