Product Specifications
| Prod Model: |
JY-780 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Chair: |
Luxury Seat |
| Equipment: |
Seat System |
| Material: |
Steel, Wood,Fabric |
| Function: |
Save Rooms |
| Type: |
Telesopic Seats |
Product Description

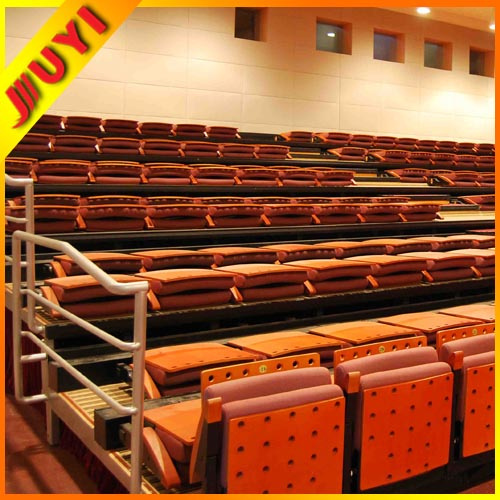

JY-780 factory price retractable telescopic gym bleachers bleacher seating for retractable bleacher
Introduction
Telescopic seating system is widely used in variety spaces like stadiums, TV studios and all kinds of multifunctional places with its advantage in space saving.
You can enjoy all events sitting on the comfortable telescopic stand when it's pulled and extended in a shape of steps.
When it is closed, you can save a lot of spaces, and carry out other activities.
Our telescopic stand is driven by manual and electric, with the great structure design, beautiful style, reliable safety measures and accurate locations.
Easy operation, convenient maintenance, low noise are advantages of the telescopic seating system.
Specifications for chairs fixed on the bleacher:
1. Fabric or HDPE plastic chairs; Fabric chairs can be with back tablet.
2. Powder coated metal steel leg frame.
3. Solid wood painted armrest holder.
4. Molded foam, metal acoustic panel, steel structure and spring in foam
5. Fully upholstery seating and backrest
6. Fabric colors is optional from color swatch.
7. Center distance: 500mm or 550mm width arm to arm.
Whole Structures of the telescopic seating system
1. Accordingly to grandstand dimensions, different types of steel profiles are used. It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.
2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.
3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.
4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of 3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material: Q235A.
Specifications for the system
Moving speed: 100mm/s
Location Accuracy: +_30mm
Driving Motor power: 0.37-1.1kw
Power: AC 380V 50-60HZ(AC 220V 50-60HZ)
Lateral Depth of the steps: 800-930mm; 1800-1850mm
Allowed dynamic load in the step surface: 300kg/
Load of bottom wheel: ≥ 300kg/piece
MOQ: 100 seats
Delivery Time: 20-30 working days
Payment Terms: T/T, L/C
|
PRODUCT PARAMETER |
|
Brand |
JUYI |
|
Type |
Telescopic Seating System |
|
Model No. |
JY-780 |
|
Place of Origin |
Chongqing |
|
Chair Size |
870mm*700mm*530mm |
|
Customized or not |
Yes |
|
General Use |
Auditorium, Theatre, Cinema,School, R etractable grandstand , TV Station Showroom , Stadium, race court, etc. |
|
Description |
Telescopic grandstand platform with soft chair, floor mounted system. The understructure is made by welded angle bar with surface hot-galvanized. The handrail on the two sides is made round bar with surface galvanized and powder coated. Special design, it turns to be a ladder after pull out, and superposed after push in. It can improve the using rate of the space. The platform adopts the high-quality steel while the front edge adopts the duralumin. Motor-driven and manual operation could be chosen. When the platform open or close, chairs will automatically fold down and up. When people sit or stand up, chairs will be ajar or closed. Seat center is 520mm seat number and row plate Seat and backrest are covered with fabric fully. Walk speed : 100mm/s
Fixed position : ±10mm
Power of motor : 0.37kw
Power source : AC 380V 50HZ
Width of each row board : 900mm
Loading pressure : 300kg/M2
Loading of wheel :≥ 250kg/pc |
|
Packaging Details |
CKD in carton, 120pcs/20GP 300pcs /40HQ |
|
MOQ |
500sets |
|
Delivery Time |
20-30 days after we received deposit payment |
|
Output |
5000sets/Month |
|
Loading Port |
Chongqing |
|
Payment |
T/T L/C |
Chongqing Juyi Theater Equipment Co., Ltd. is a manufacturer of auditorium chairs, telescopic bleacher seating system, sports stadium seats for performance halls, theaters, Cinema and Multifunctional Hall.
"Assemble talent, concentrate art" is our goal. Advanced equipment, elaborate crafts and good after-sales service guarantee to give our customers full confidence.
In the last several years, we have supplied our chairs and system to many important Domestic and oversea projects. Such as 2008 Beijing Olympic Games press center hall; 2014 Winter Olympic game in Sochi, Russia; PLA General Armament Department Conference Hall in Beijing; Tianjin Binhu Theater; Gansu Jia Yu Guan Theater; 2011 Shenzhen Universiade Yan Tian Stadium.
Also our products have been exported to many other countries; Such as France, Germany, Russia, Georgia, Lithuania, Norway, Holland, USA, Australian, Mexico, Venezuela, Puerto Rico, Ecuador, Kenya, Nigeria, Haiti, Saudi Arabia, Dubai, Yemen, Indonesia, Thailand, Philippines, India, Singapore, Sri Lankand, Vietnam
Layout drawing design and installation process is available; also 5 years guarantee after sales is provided.
