Product Specifications
| Prod Model: |
jzc |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating Power: |
0.3 0.37 1.1 1.5kw |
| Processing Methods: |
Physics and Chemistry |
| Pullution Sources: |
Electromagnetic Radiation Pollution Control |
Product Description

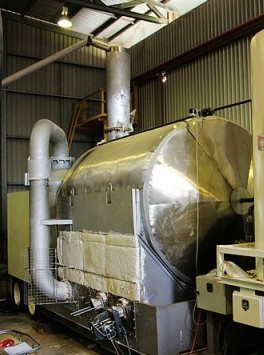

Series JZC waste engine Oil regeneration equipment is specially designed for regenerating the black engine oil and diesel oil. It can effectively remove the wear debris, asphalt, wax quality, impurities, moisture, acid quality, organic acids and inorganic acids from waste engine oil; Also, carbon particles, deep oxides and other fine impurities which disperse in oil are all removed out. JZC series can demulsify and improve oil color, making the regenerated oil color closed to new oil color, recover the oil performances. After the regenerating process, the treated oil will be the engine oil and diesel oil, which is suitable for making new diesel oil or lubricating oils.
The main oil of the final oil is the diesel fuel oil.
You can add different additives in the final treated oil, you can get different doils.
And the machine can treat all kinds of the waste oil.
JZC engine oil regeneration machine is very suitable for the oil refinery companies, also for the small oil company who want to make the oil by self.
Outstanding Features:
1. Series JZC machine is energy-saving, environment protective machine. In the process, it generates less waste (sludge) only, the waste (Sludge) doesn't contain any oil; The oil-gas and low volatile are discharged after combustion of hydrocarbons and purification treatment, so, it is no pollution for the environment at all (The waste/sludge also can be processed into a carbon toner for printing the raw materials).
2. After waste engine oil treated by JZC machine, the final products is the base oil; The base oil can be used for making the diesel oil and lubricating oil. The user can deploy the base oil resource, changed the base oil into any model and any specification oils by adding different additives. (We can provide you the relative additive name and way)
3. About the fuel: It is very low operation cost, because series JZC heat the waste engine oil by combusting fuel (The fuel can be the waste engine oil self), it is very less electricity consumption. During the regenerating process, you don't need to add any other chemicals; The whole process is under high temperature distillation process (80-580C).
|
Index name |
Unit \ Type |
JZC-2 |
JZC-5 |
JZC -10 |
JZC -20 |
|
Handling capacity |
Ton / day |
2 |
5 |
10 |
20 |
|
Recovery ratio |
% |
75-90 |
75-90 |
75-90 |
75-90 |
|
Working pressure |
Mpa |
≤ 0.3 |
≤ 0.3 |
≤ 0.3 |
≤ 0.3 |
|
Temperature Range |
C |
80-580 |
80-580 |
80-580 |
80-580 |
|
Working Noise |
dB (A) |
65 |
65 |
65 |
70 |
|
Power Supply |
V |
As per user’ soption |
|
Fuel consumption |
T |
0.15 |
0.3 |
0.6 |
0.7-0.9 |
|
Heating power |
kW |
0.3 |
0.37 |
1.1 |
1.5 |
|
Total power |
kW |
5.5 |
7.5 |
9.2 |
15.4 |
|
In/Out of pipe |
mm |
15 |
20 |
25 |
32 |
|
Equipment area |
M2 |
700 |
1000 |
1600 |
2000 |
|
Equipment weight |
T |
2.2 |
3 |
5 |
8 |
